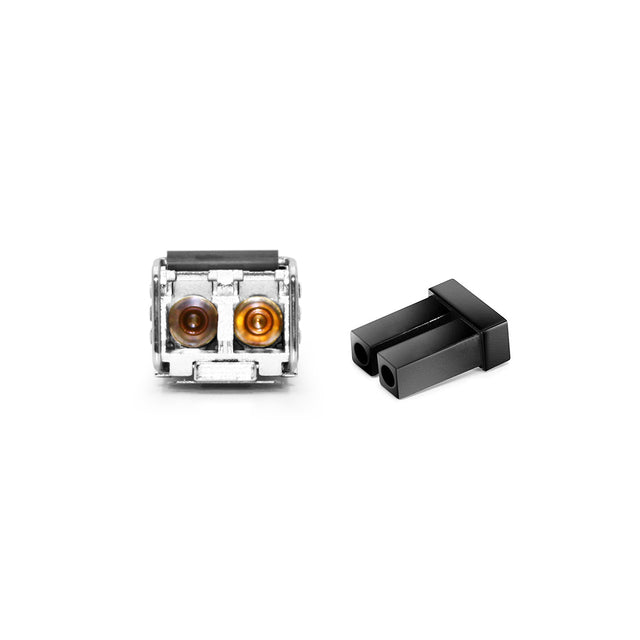

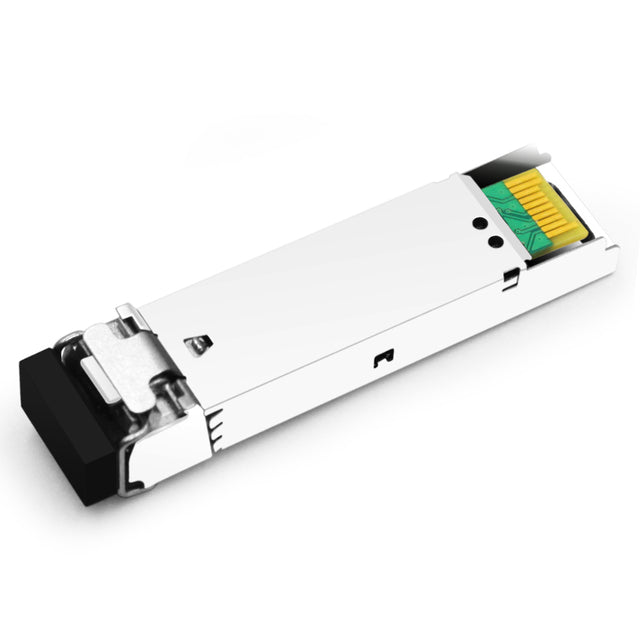

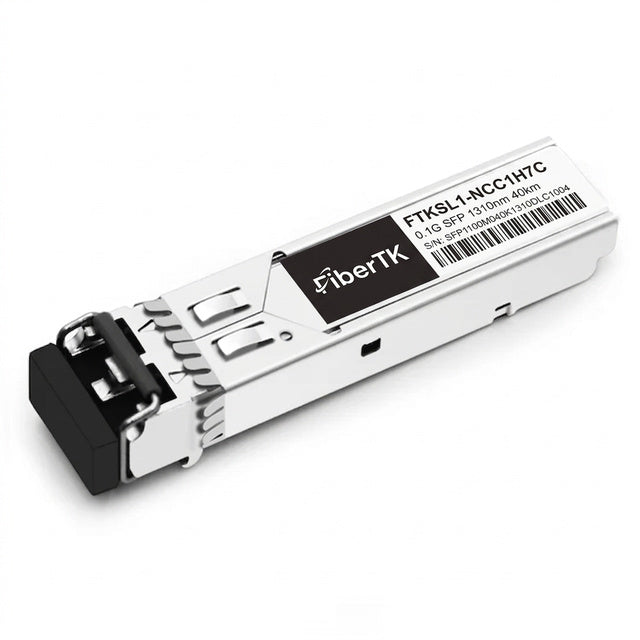

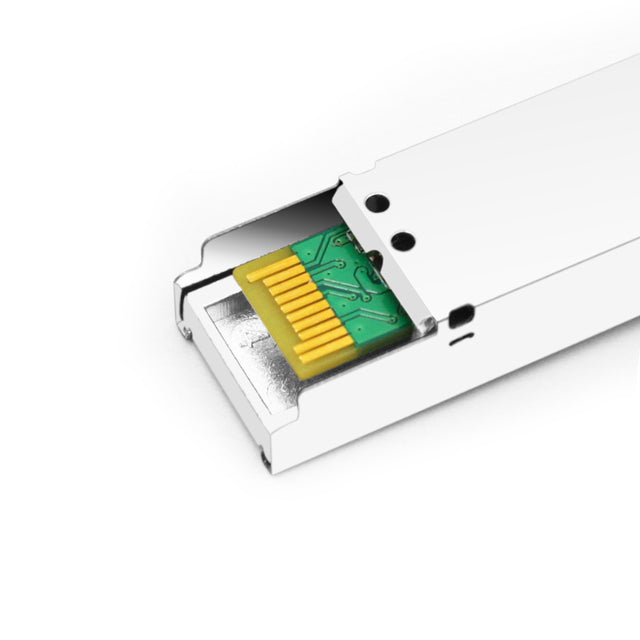

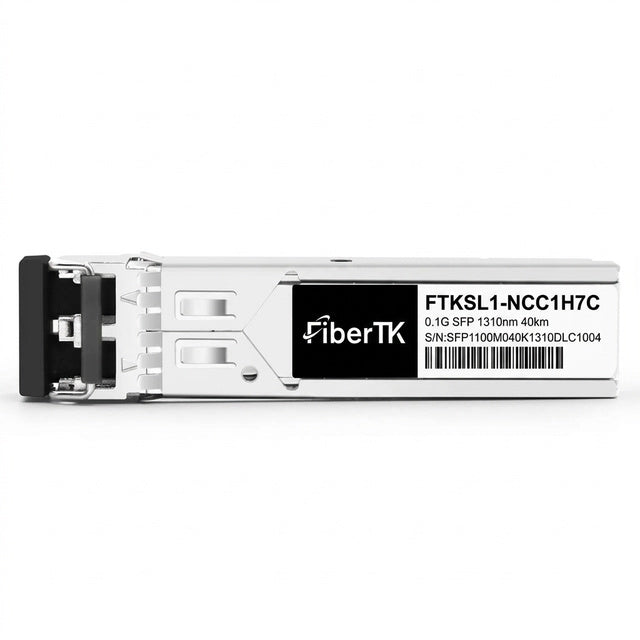

100BASE-ER SFP 1310nm 40km Duplex LC SMF

100BASE-ER SFP 1310nm 40km Duplex LC SMF

P# FiberTK

Form Factor	SFP
Data Rate	100M
Max Distance	40km
Wavelength	1310nm
Connector	DuplexLC
Media Type	SMF
Transmitter Type	DFB
Receiver Type	APD
TX Power	-5~0dBm
Receiver Sensitivity	< -24dBm
Power Budget	19dB
Receiver Overload	-3dBm
Max Power Consumption	≤1W
Extinction Ratio	>9dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	SFP MSA, SFF-8472, IEEE 802.3
Modulation	NRZ
BER	1E-12
MTBF	约10,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
