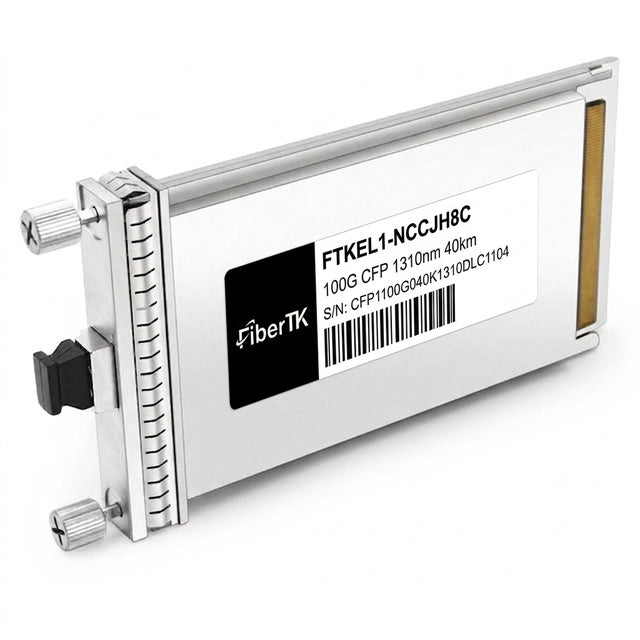

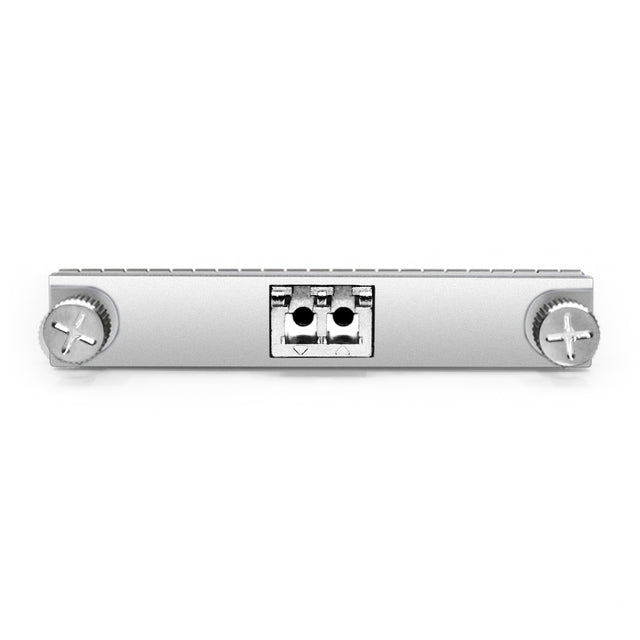

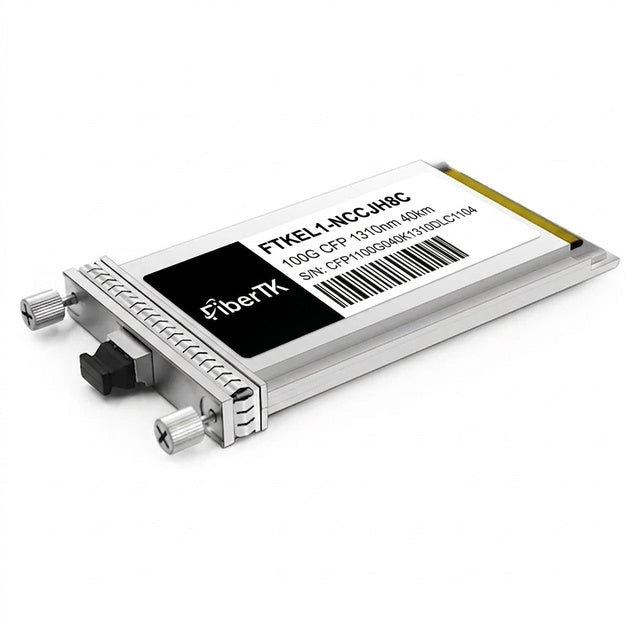

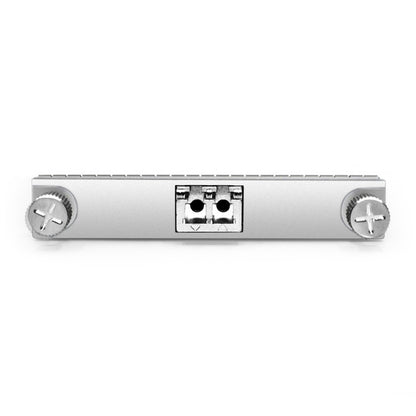

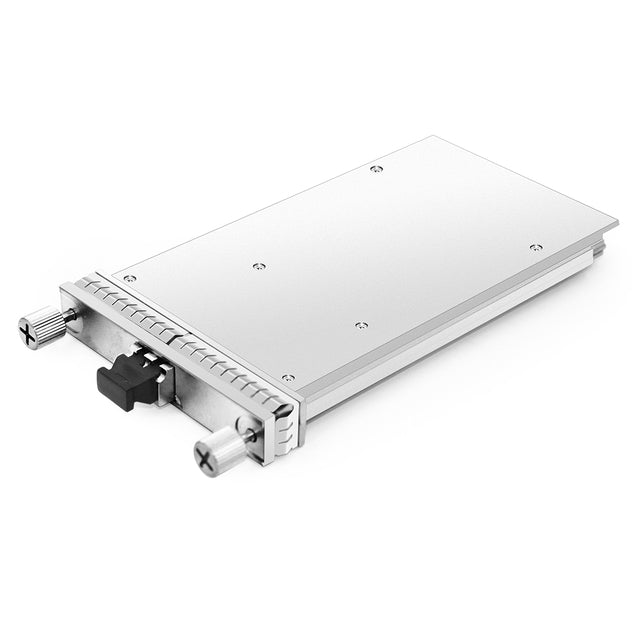

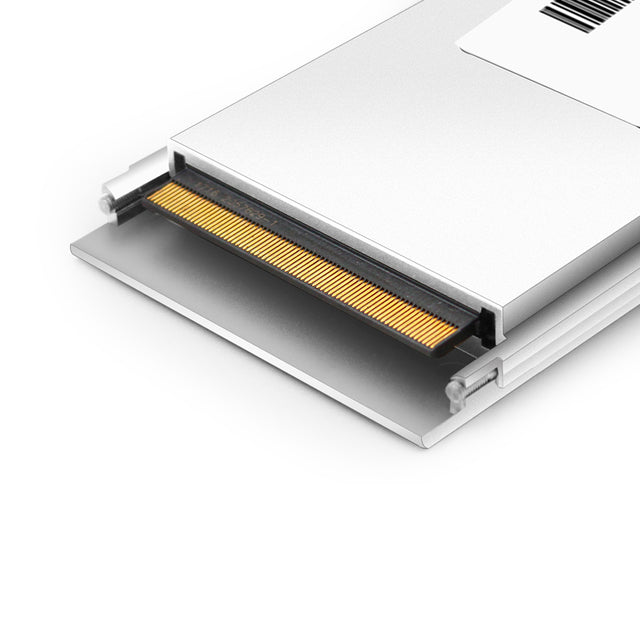

100GBASE-ER CFP 1310nm 40km Duplex LC SMF

100GBASE-ER CFP 1310nm 40km Duplex LC SMF

P# FiberTK

Form Factor	CFP
Data Rate	100G
Max Distance	40km
Wavelength	1310nm
Connector	DuplexLC
Media Type	SMF
Transmitter Type	EML
Receiver Type	APD
TX Power	0~5dBm
Receiver Sensitivity	< -15dBm
Power Budget	15dB
Receiver Overload	5dBm
Max Power Consumption	≤12W
Extinction Ratio	>4dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	CFP MSA, IEEE 802.3ba
Modulation	4x 25G-NRZ光口
CDR	TX & RX内置CDR
Packaging Technology	盒装包装
BER	1E-12（with FEC）
MTBF	约3,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
