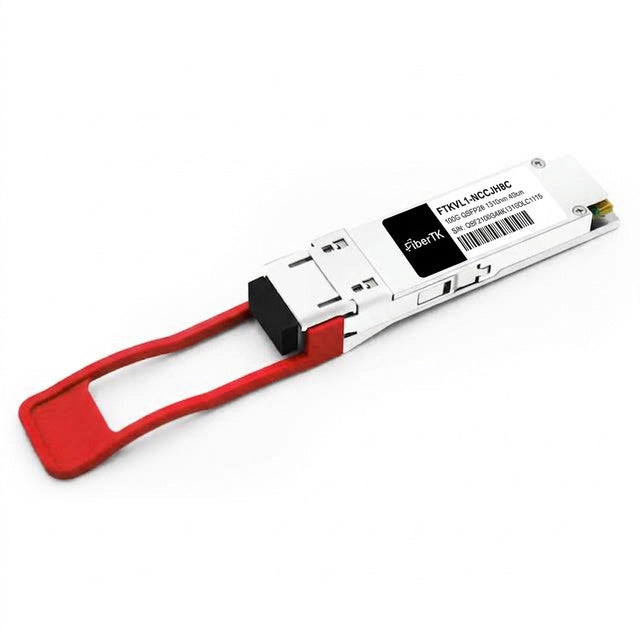

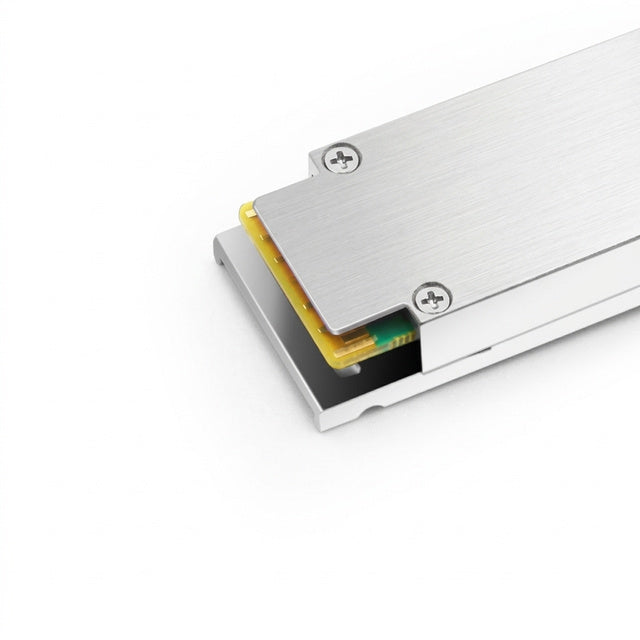

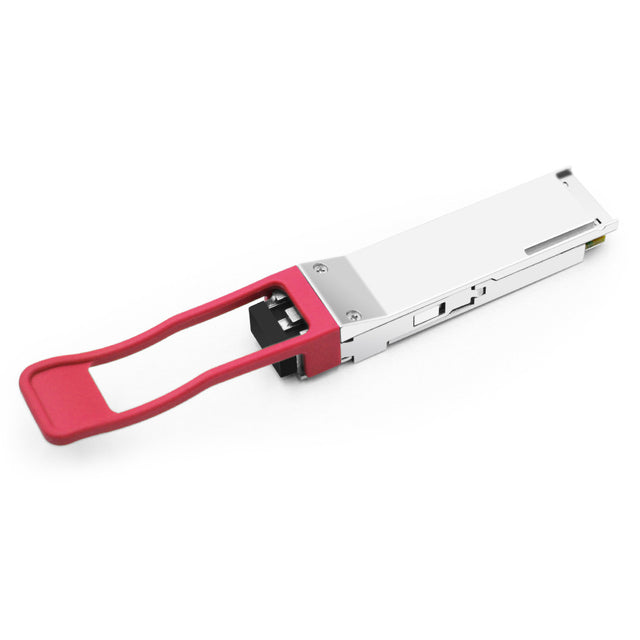

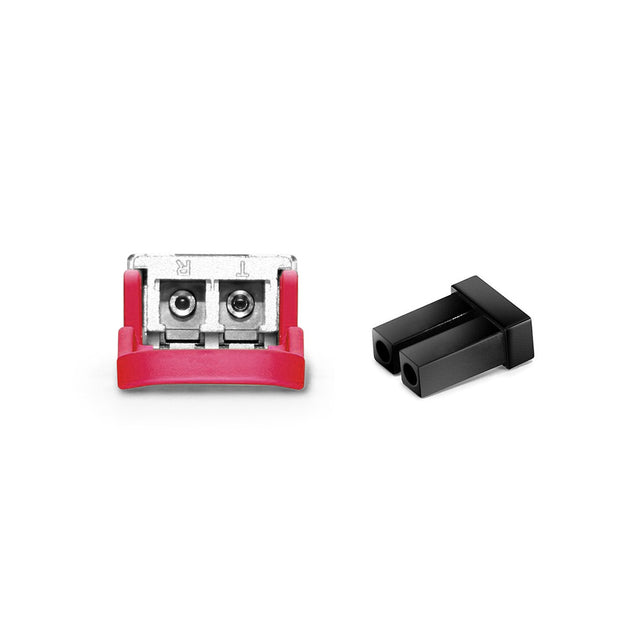

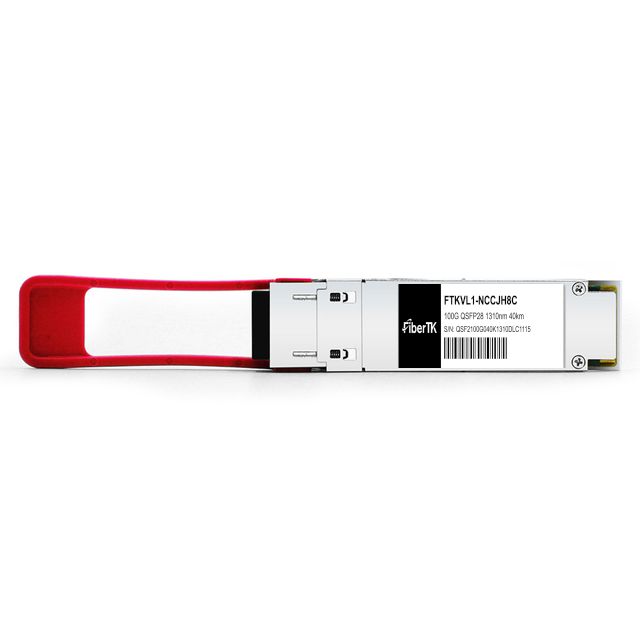

100GBASE-ER QSFP28 1310nm 40km Duplex LC SMF

100GBASE-ER QSFP28 1310nm 40km Duplex LC SMF

P# FiberTK

Form Factor QSFP28
Data Rate 100G
Max Distance 40km
Wavelength 1310nm
Connector DuplexLC
Media Type SMF
Transmitter Type EML
Receiver Type APD
TX Power 0~5dBm
Receiver Sensitivity < -15dBm
Power Budget 15dB
Receiver Overload 5dBm
Max Power Consumption ≤6W
Extinction Ratio >4dB
DDM/DOM 支持
Operating Temperature 0～70℃（32～158°F）
Protocols QSFP28 MSA, SFF-8636, IEEE 802.3bm/802.3cd
Modulation 4x 25G-NRZ光口
CDR TX & RX内置CDR
Packaging Technology 盒装包装
BER 1E-12（with FEC）
MTBF 约3,000,000小时@40℃
Warranty 5年
Compatible With Cisco
