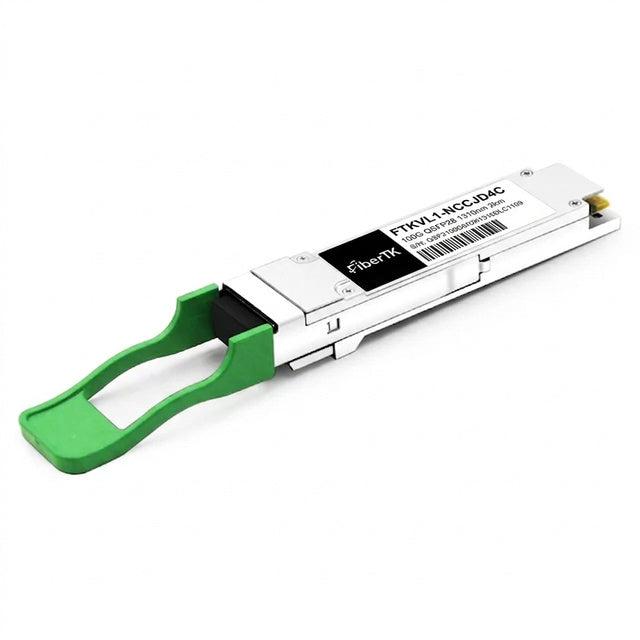

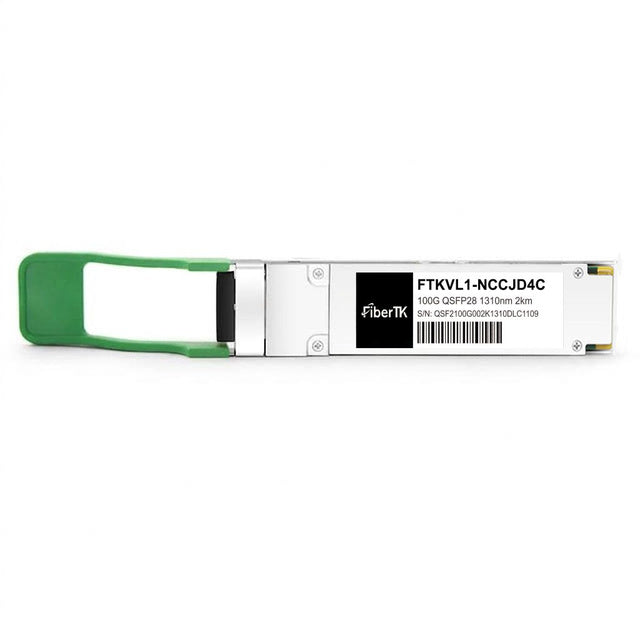

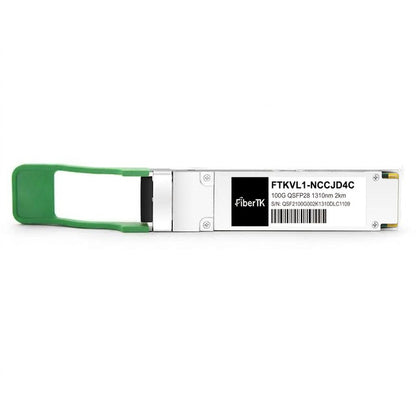

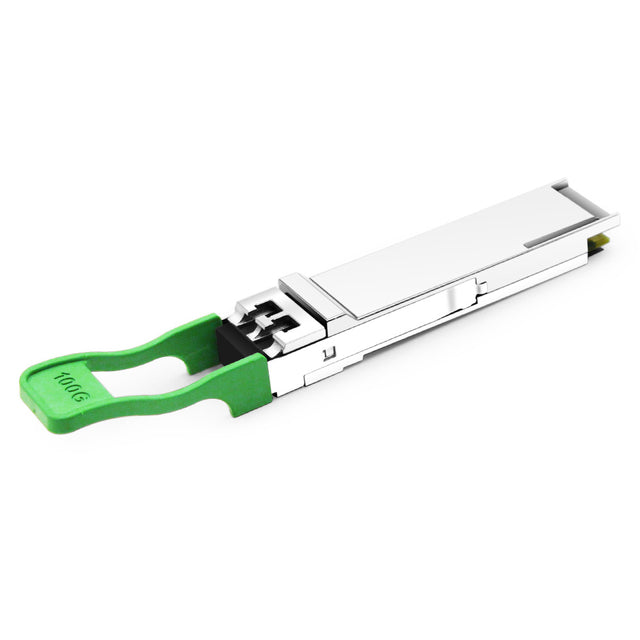

100GBASE-LX QSFP28 1310nm 2km Duplex LC SMF

100GBASE-LX QSFP28 1310nm 2km Duplex LC SMF

P# FiberTK

Form Factor	QSFP28
Data Rate	100G
Max Distance	2km
Wavelength	1310nm

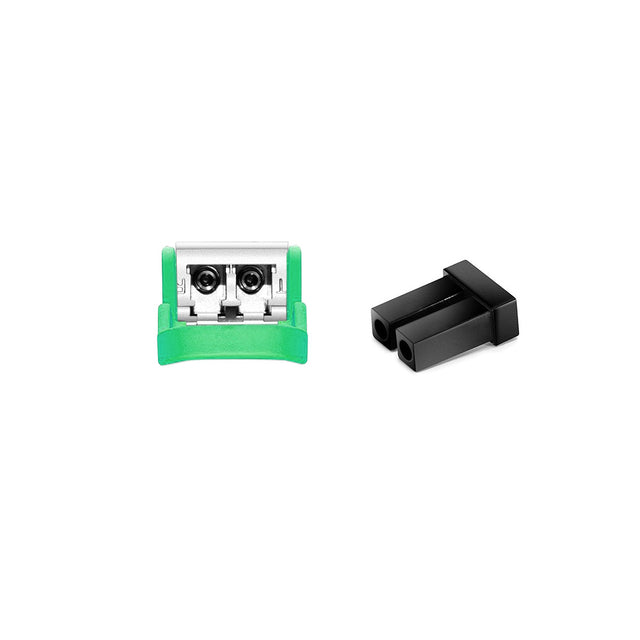

Connector	DuplexLC
Media Type	SMF
Transmitter Type	EML
Receiver Type	PIN
TX Power	-2.9~4.0dBm
Receiver Sensitivity	< -6.0dBm
Power Budget	3.1dB
Receiver Overload	4.0dBm
Max Power Consumption	≤4.5W
Extinction Ratio	>3.5dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	QSFP28 MSA, SFF-8636, IEEE 802.3bm/802.3cd
Modulation	4x 25G-NRZ光口
CDR	TX & RX内置CDR
Packaging Technology	盒装包装
BER	1E-12（with FEC）
MTBF	约3,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
