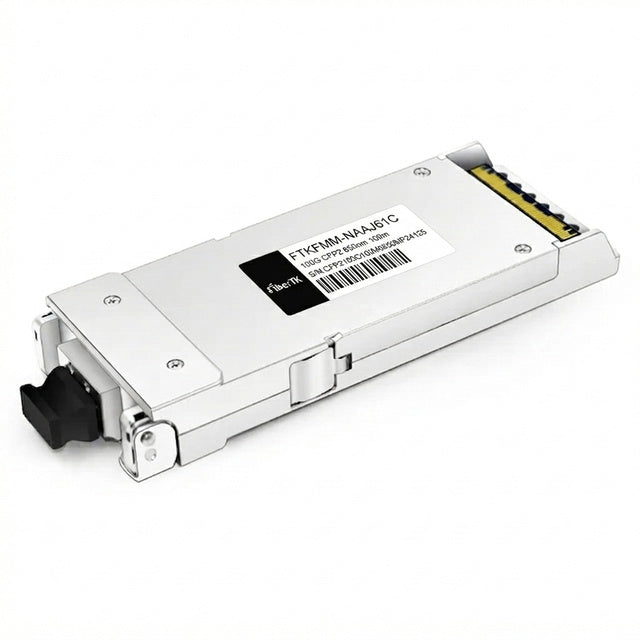

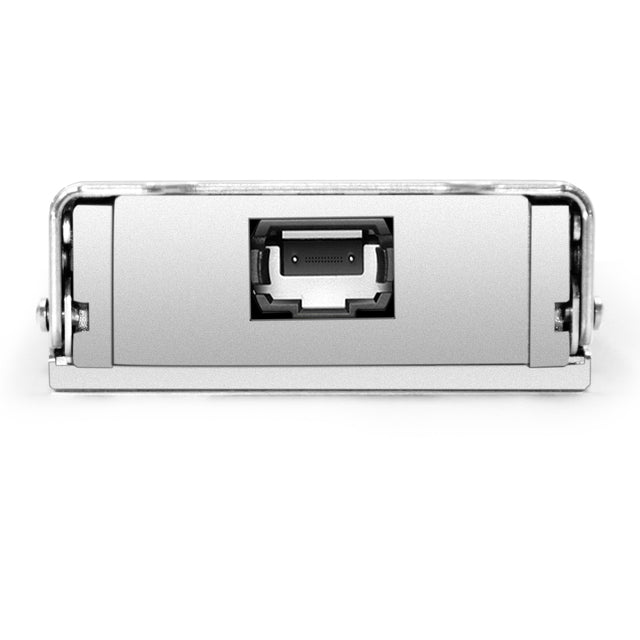

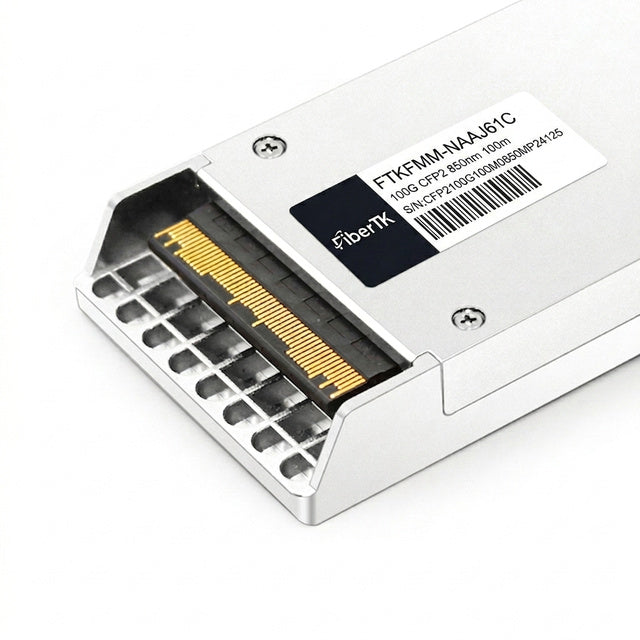

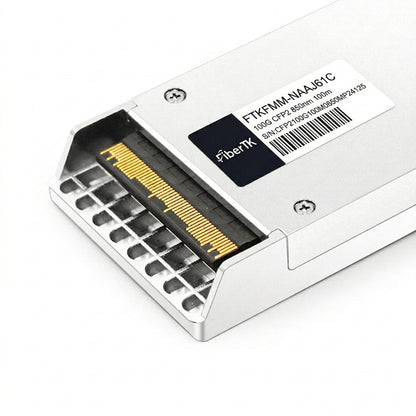

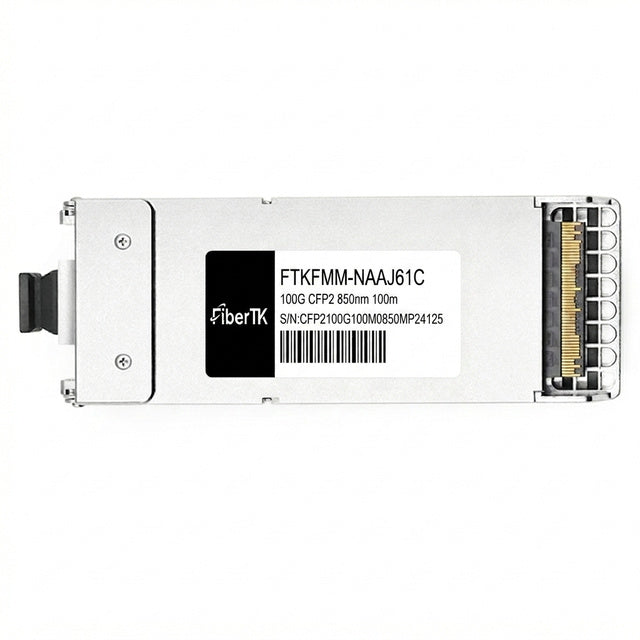

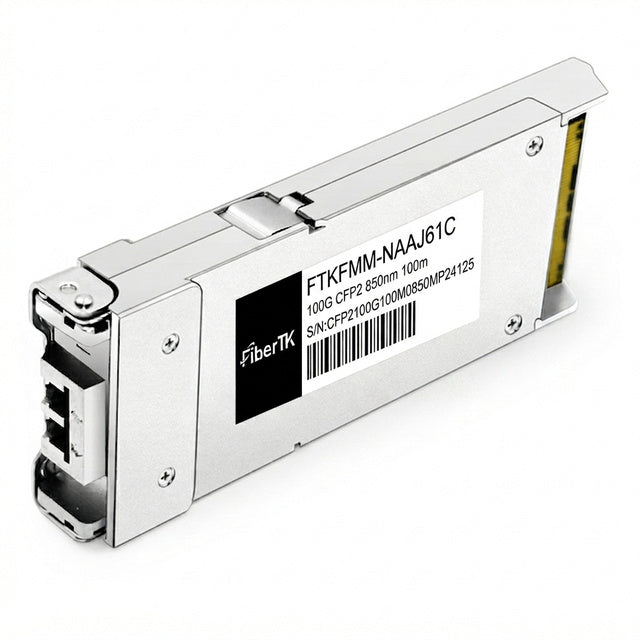

100GBASE-SR CFP2 850nm 100m on OM3/150m on OM4 MPO/MTP-24 MMF

P# FiberTK

Form Factor	CFP2
Data Rate	100G
Max Distance	100m on OM3/150m on OM4
Wavelength	850nm
Connector	MPO/MTP-24
Media Type	MMF
Transmitter Type	VCSEL
Receiver Type	PIN
TX Power	-8.4~2.4dBm
Receiver Sensitivity	< -10.3dBm
Power Budget	1.9dB
Receiver Overload	2.4dBm
Max Power Consumption	≤8W
Extinction Ratio	>3dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	CFP2 MSA, IEEE 802.3ba
Core Size	50/125µm
Modulation	4x 25G-NRZ光口
CDR	TX & RX内置CDR
Packaging Technology	盒装包装
BER	1E-12（with FEC）
MTBF	约3,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
