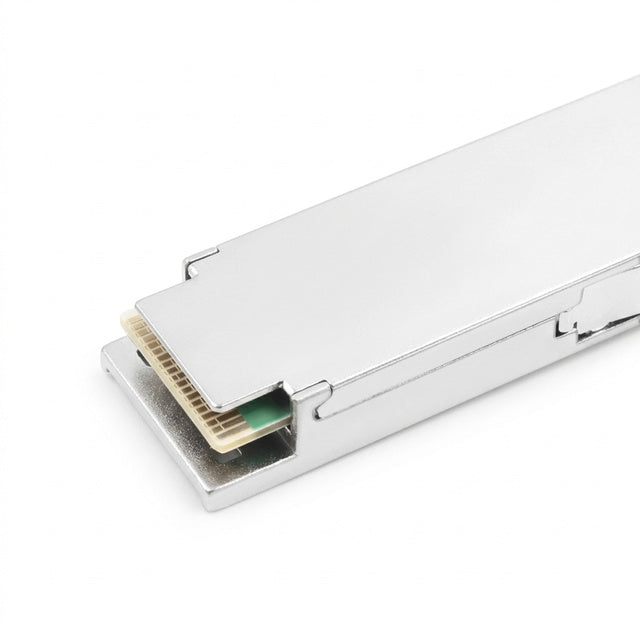

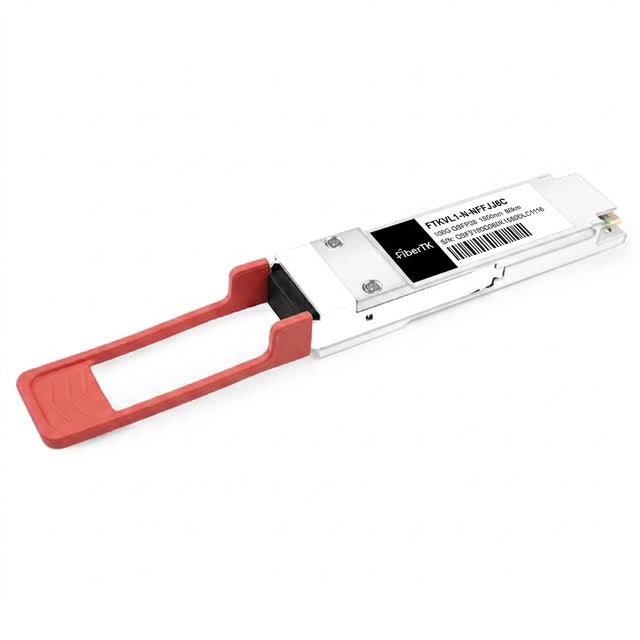

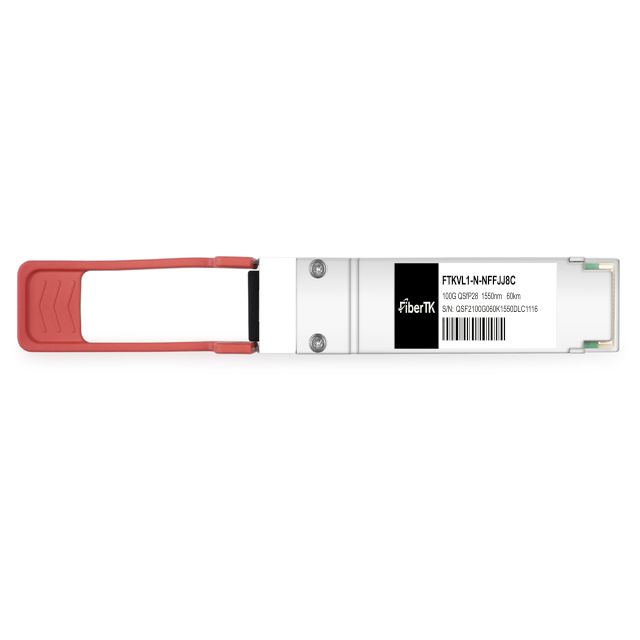

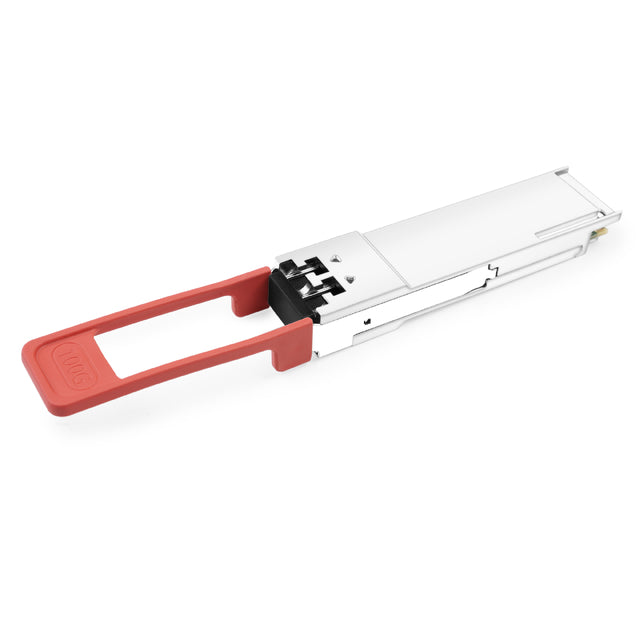

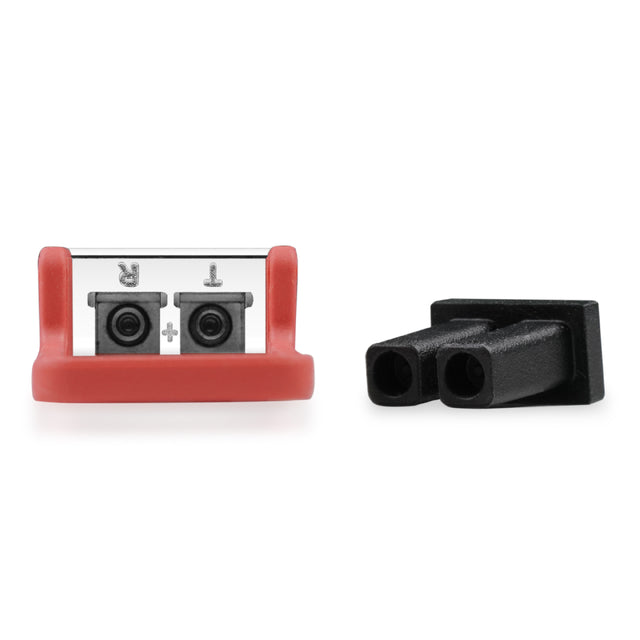

100GBASE-ZR QSFP28 1550nm 60km Duplex LC SMF

100GBASE-ZR QSFP28 1550nm 60km Duplex LC SMF

P# FiberTK

Form Factor	QSFP28
Data Rate	100G
Max Distance	60km
Wavelength	1550nm
Connector	DuplexLC
Media Type	SMF
Transmitter Type	EML
Receiver Type	APD
TX Power	0~5dBm
Receiver Sensitivity	< -18dBm
Power Budget	18dB
Receiver Overload	-7dBm
Max Power Consumption	≤6W
Extinction Ratio	>3.5dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	QSFP28 MSA, SFF-8636, IEEE 802.3bm/802.3cd
Modulation	4x 25G-NRZ光口
CDR	TX & RX内置CDR
Packaging Technology	盒装包装
BER	1E-12（with FEC）
MTBF	约3,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
