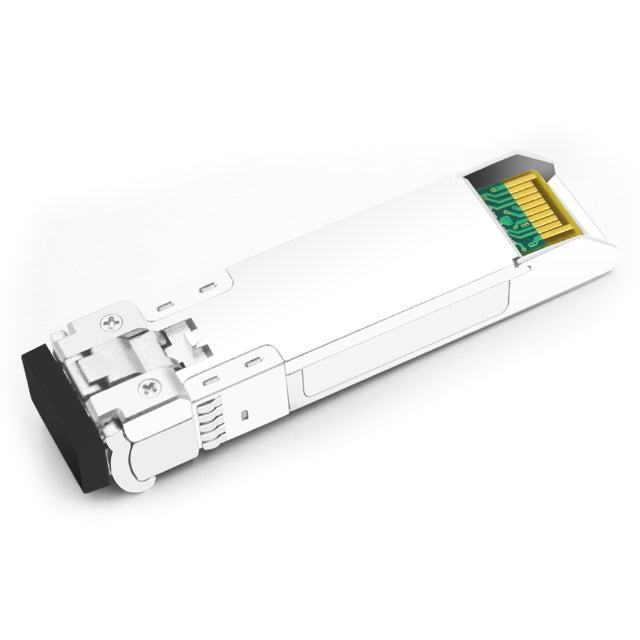

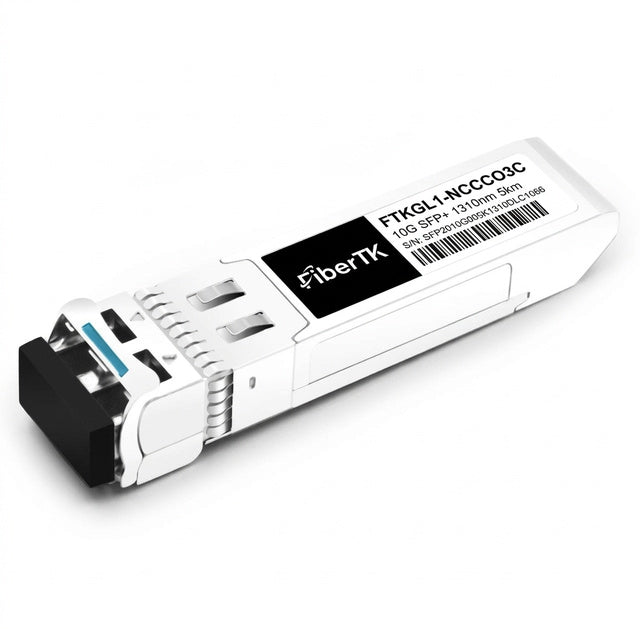

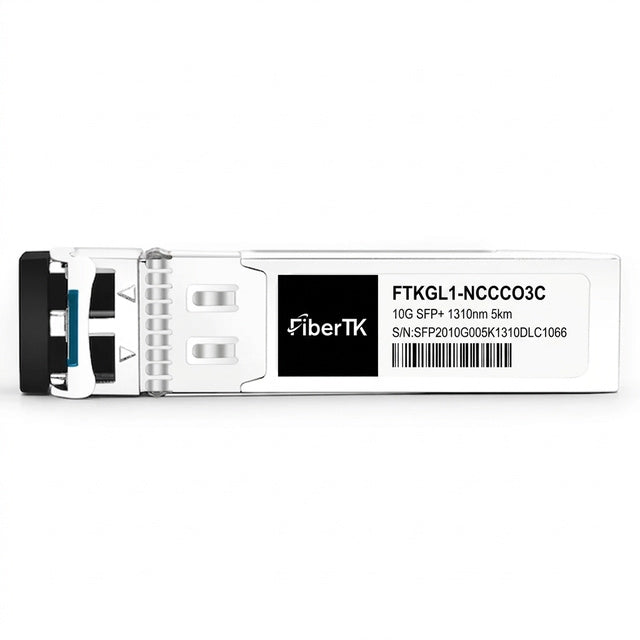

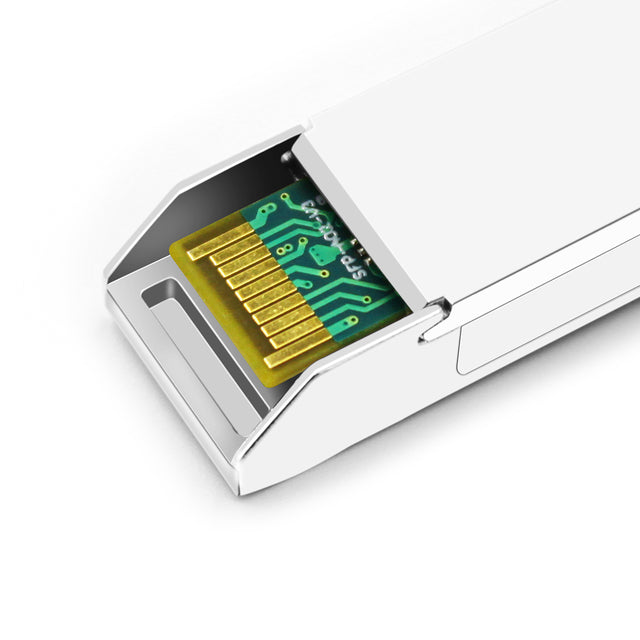

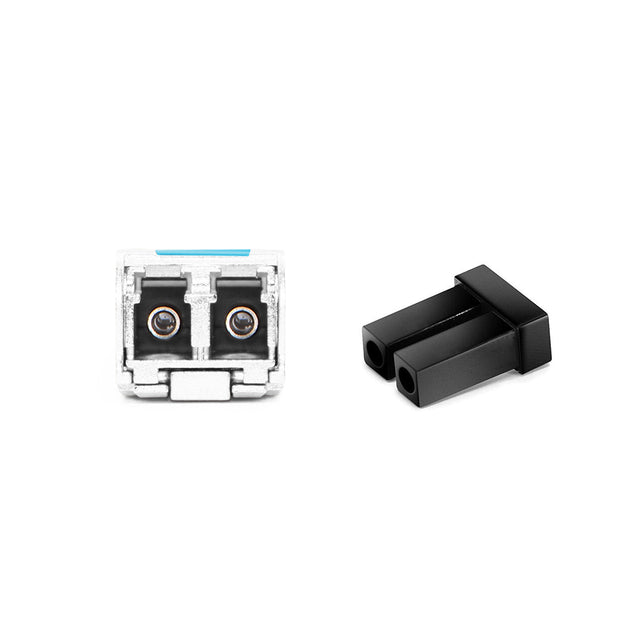

10GBASE-LR SFP+ 1310nm 5km Duplex LC SMF

10GBASE-LR SFP+ 1310nm 5km Duplex LC SMF

P# FiberTK

Form Factor	SFP+
Data Rate	10G
Max Distance	5km
Wavelength	1310nm
Connector	DuplexLC
Media Type	SMF
Transmitter Type	DFB
Receiver Type	PIN
TX Power	-6.5~0.5dBm
Receiver Sensitivity	< -14.4dBm
Power Budget	7.9dB
Receiver Overload	0.5dBm
Max Power Consumption	≤1.5W
Extinction Ratio	>3.5dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	SFP+ MSA, SFF-8431, SFF-8472, IEEE 802.3ae
Modulation	NRZ
BER	1E-12
MTBF	约10,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
