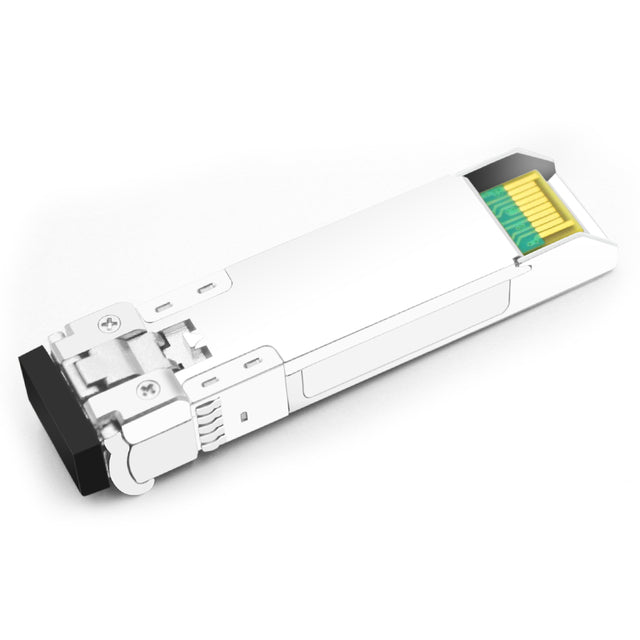

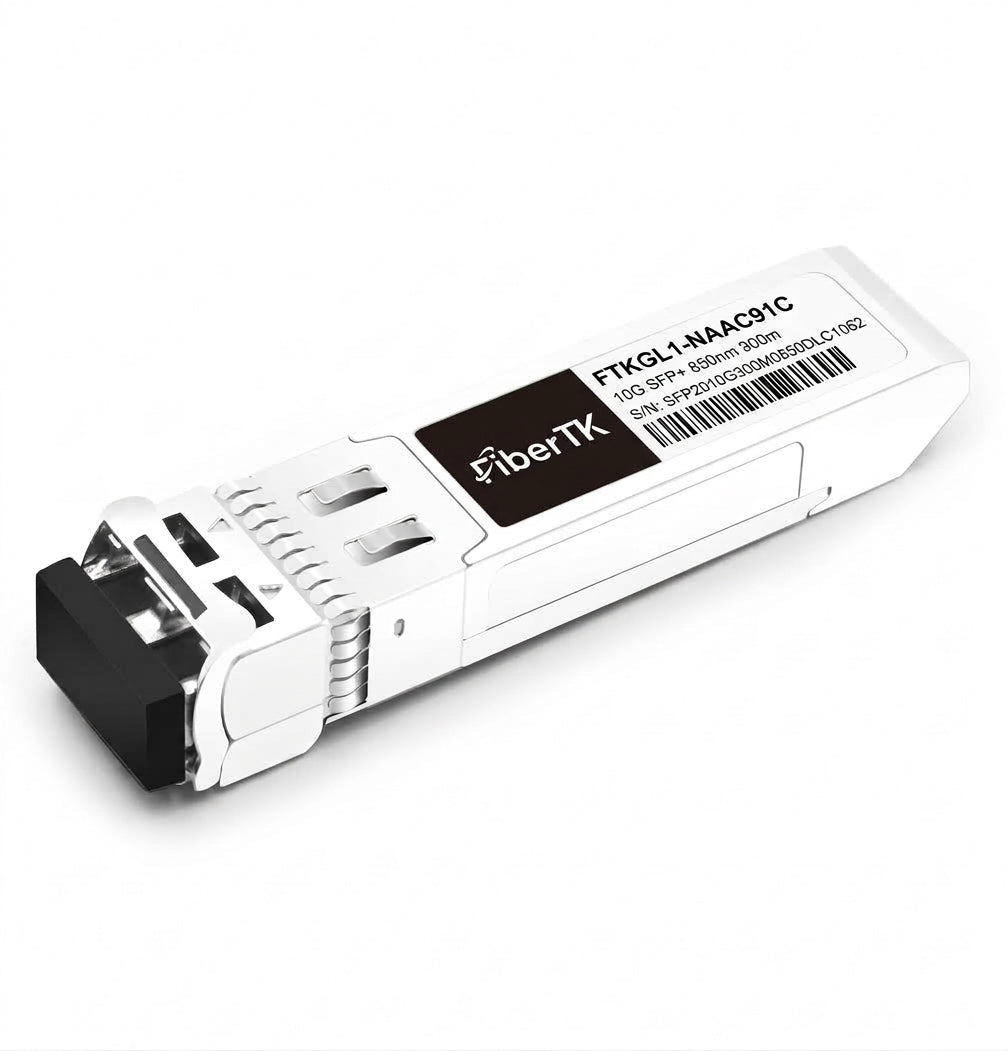

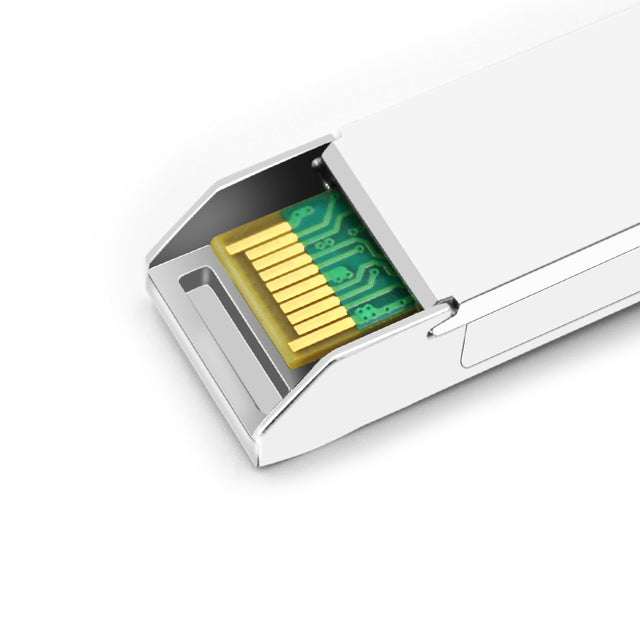

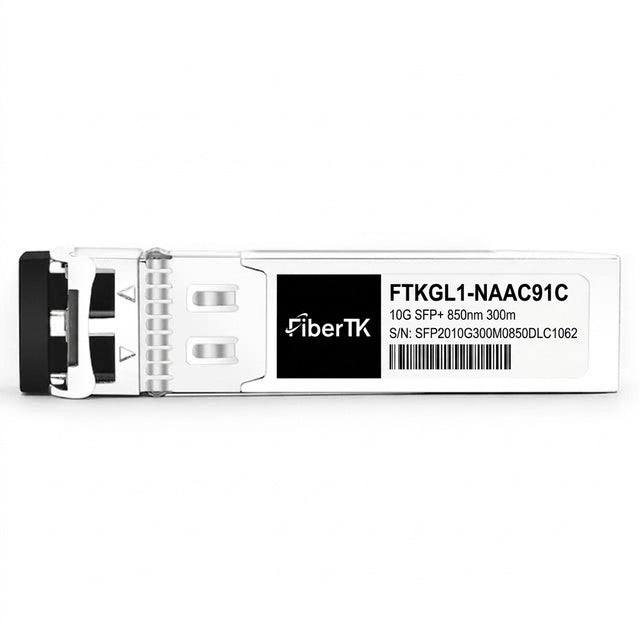

10GBASE-SR SFP+ 850nm 300m on OM3/400m on OM4 Duplex LC MMF

P# FiberTK

Form Factor	SFP+
Data Rate	10G
Max Distance	300m on OM3/400m on OM4
Wavelength	850nm

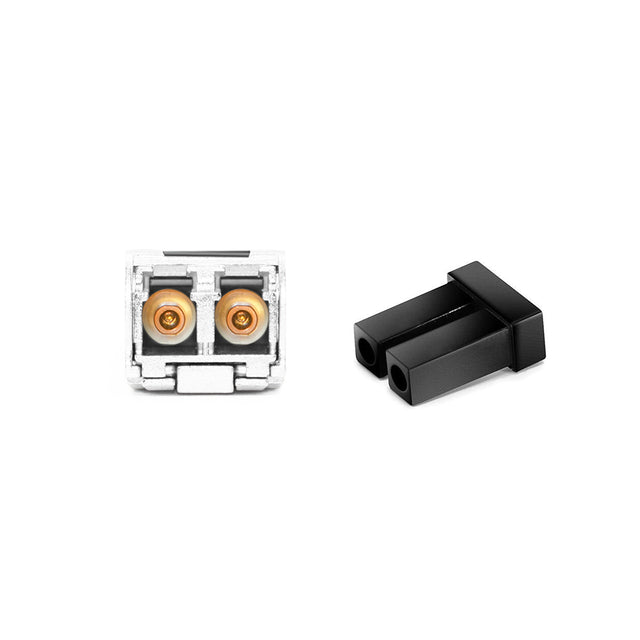

Connector	DuplexLC
Media Type	MMF
Transmitter Type	VCSEL
Receiver Type	PIN
TX Power	-7.3~-1dBm
Receiver Sensitivity	< -11.1dBm
Power Budget	3.8dB
Receiver Overload	-1dBm
Max Power Consumption	≤1.5W
Extinction Ratio	>3dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	SFP+ MSA, SFF-8431, SFF-8472, IEEE 802.3ae
Core Size	50/125µm
Modulation	NRZ
BER	1E-12
MTBF	约10,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
