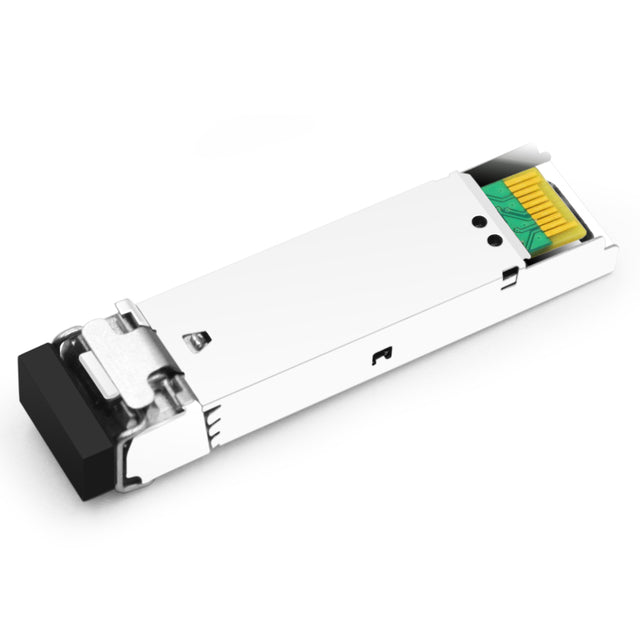

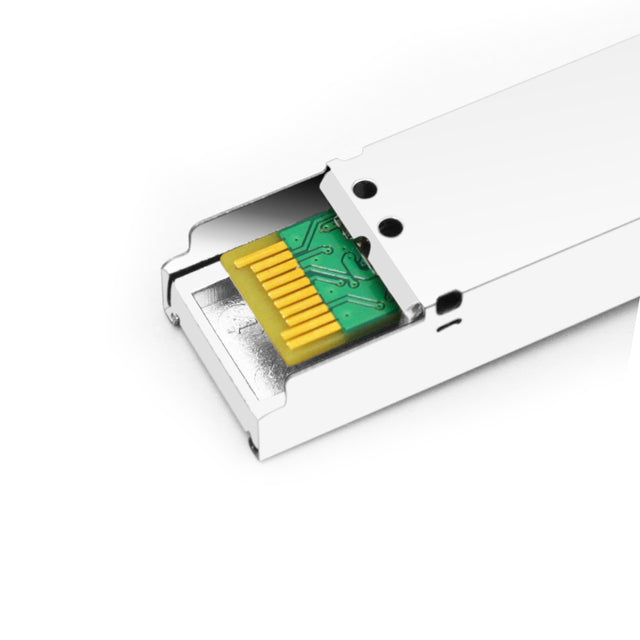

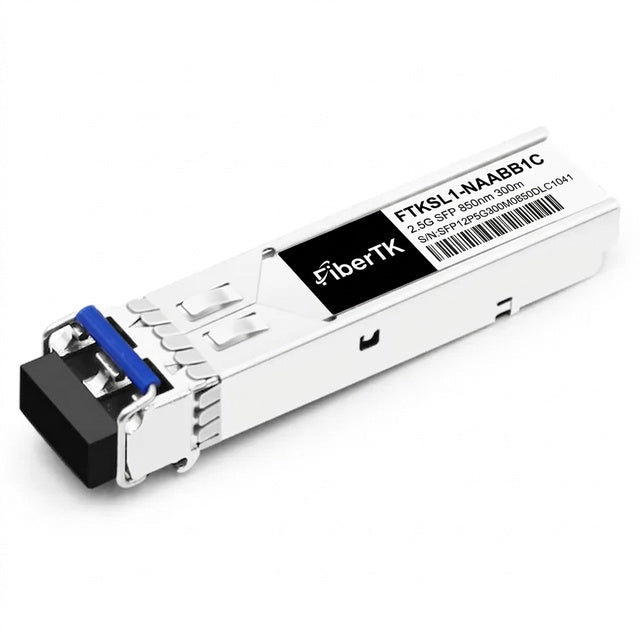

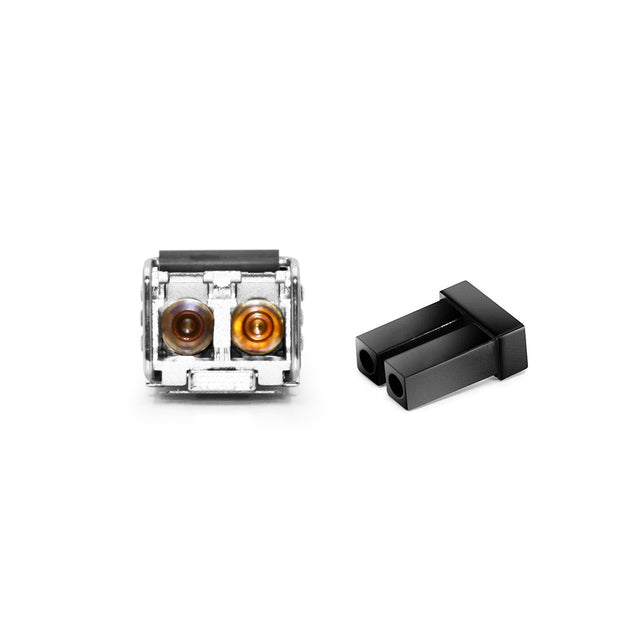

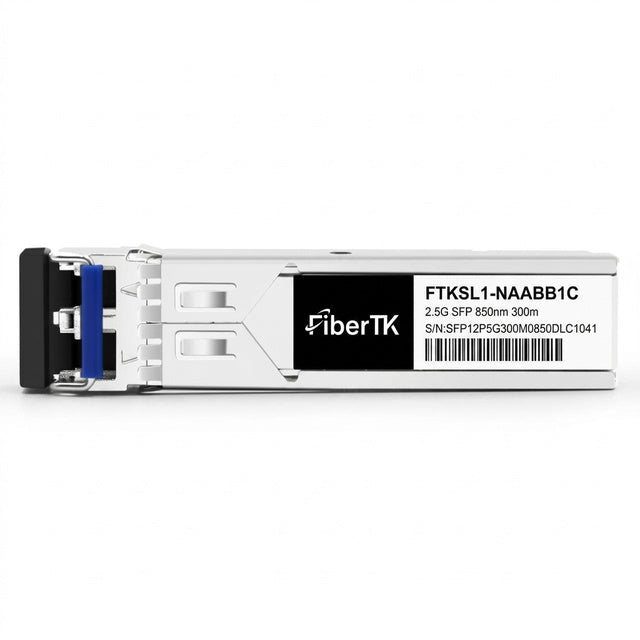

2.5GBASE-SR SFP 850nm 300m Duplex LC MMF

2.5GBASE-SR SFP 850nm 300m Duplex LC MMF

P# FiberTK

Form Factor	SFP
Data Rate	2.5G
Max Distance	300m
Wavelength	850nm
Connector	DuplexLC
Media Type	MMF
Transmitter Type	VCSEL
Receiver Type	PIN
TX Power	-9.5~-3dBm
Receiver Sensitivity	< -17dBm
Power Budget	7.5dB
Receiver Overload	0dBm
Max Power Consumption	≤1.2W
Extinction Ratio	>3dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	SFP MSA, SFF-8472, IEEE 802.3
Core Size	50/125µm
Modulation	NRZ
BER	1E-12
MTBF	约10,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
