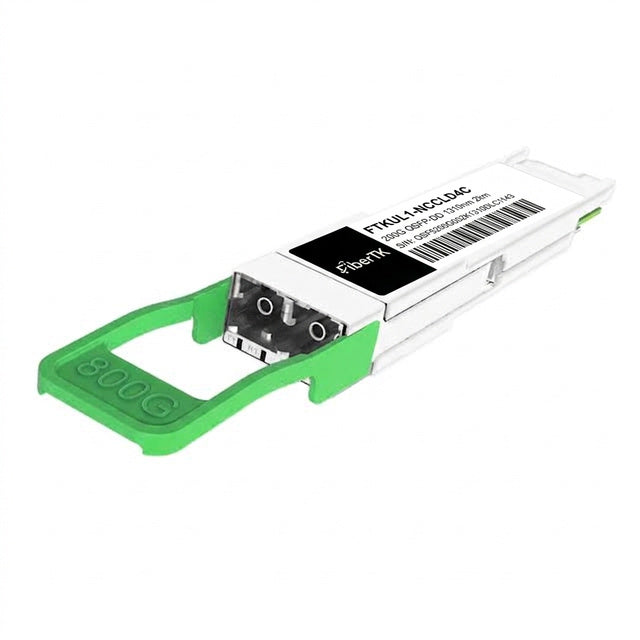

200GBASE-FR4 QSFP-DD 1310nm 2km Duplex LC SMF

200GBASE-FR4 QSFP-DD 1310nm 2km Duplex LC SMF

P# FiberTK

Form Factor QSFP-DD
Data Rate 200G
Max Distance 2km
Wavelength 1310nm
Connector DuplexLC
Media Type SMF
Transmitter Type EML
Receiver Type PIN
TX Power -2.9~4.0dBm
Receiver Sensitivity < -6.0dBm
Power Budget 3.1dB
Receiver Overload 4.0dBm
Max Power Consumption ≤8W
Extinction Ratio >3.5dB
DDM/DOM 支持
Operating Temperature 0～70℃（32～158°F）
Protocols QSFP-DD MSA, CMIS, IEEE 802.3bs/802.3ck
Modulation 4x 50G-PAM4光口
CDR TX & RX内置CDR
Packaging Technology 盒装包装
BER 2.4E-4（Pre-FEC）/ 1E-12（Post-FEC）
MTBF 约3,000,000小时@40℃
Warranty 5年
Compatible With Cisco
