200GBASE-FR4 QSFP56 1310nm 2km Duplex LC SMF

200GBASE-FR4 QSFP56 1310nm 2km Duplex LC SMF

P# FiberTK

Form Factor	QSFP56
Data Rate	200G
Max Distance	2km
Wavelength	1310nm

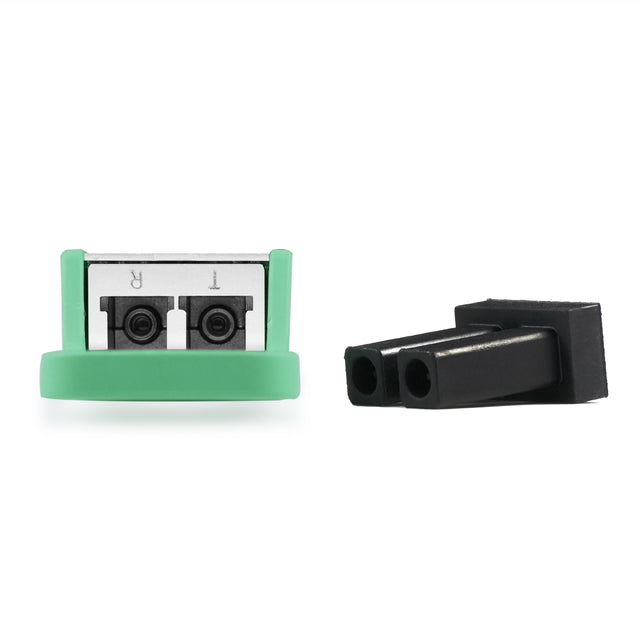

Connector	DuplexLC
Media Type	SMF
Transmitter Type	EML
Receiver Type	PIN
TX Power	-2.9~4.0dBm
Receiver Sensitivity	< -6.0dBm
Power Budget	3.1dB
Receiver Overload	4.0dBm
Max Power Consumption	≤8W
Extinction Ratio	>3.5dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	QSFP MSA, CMIS, IEEE 802.3cd/802.3ck
Modulation	4x 50G-PAM4光口
CDR	TX & RX内置CDR
Packaging Technology	盒装包装
BER	2.4E-4（Pre-FEC）/ 1E-12（Post-FEC）
MTBF	约3,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
