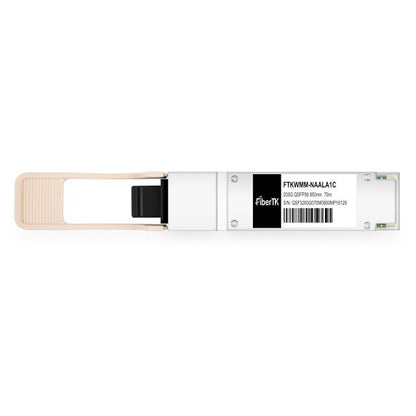

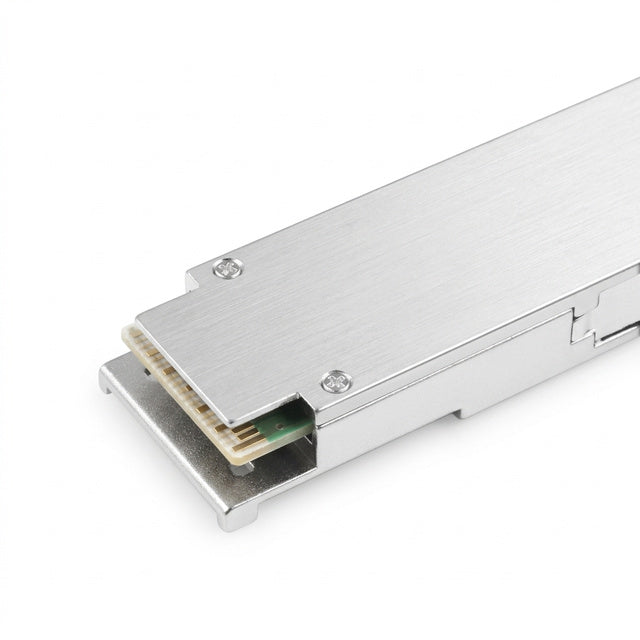

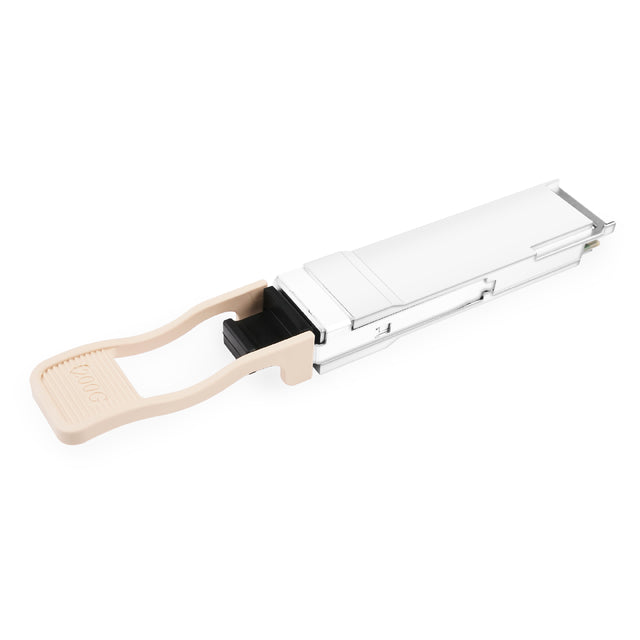

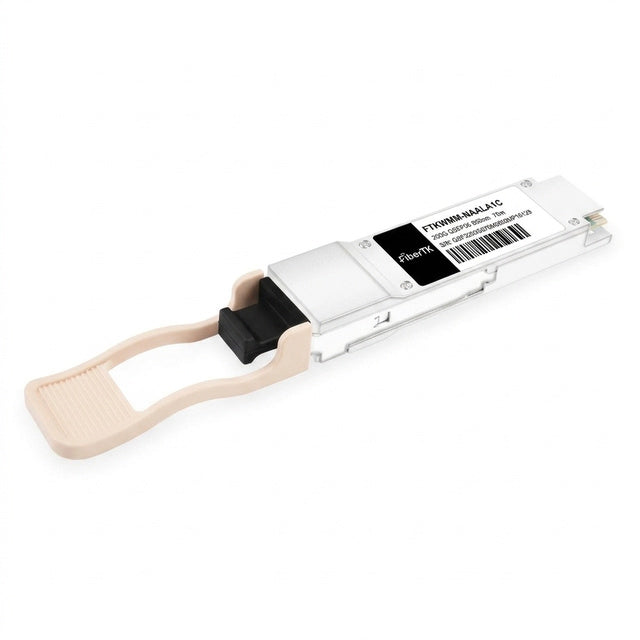

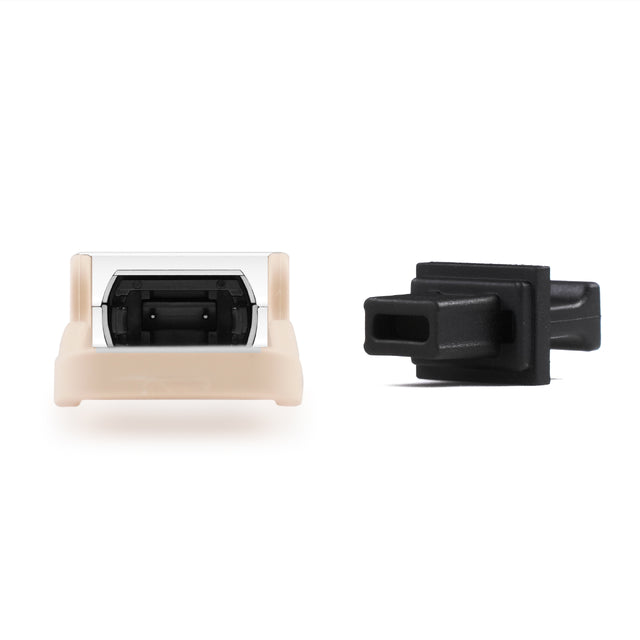

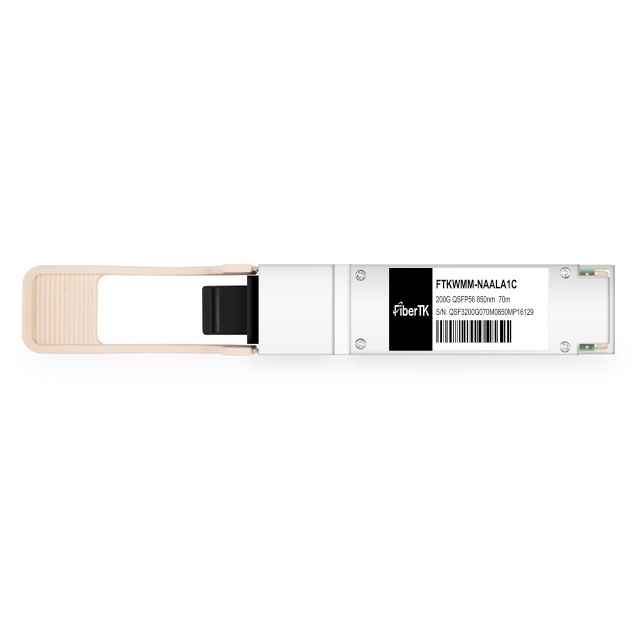

200GBASE-SR4 QSFP56 850nm 70m on OM3/100m on OM4 MPO/MTP-16 MMF

P# FiberTK

Form Factor	QSFP56
Data Rate	200G
Max Distance	70m on OM3/100m on OM4
Wavelength	850nm
Connector	MPO/MTP-16
Media Type	MMF
Transmitter Type	VCSEL
Receiver Type	PIN
TX Power	-4.5~4.0dBm
Receiver Sensitivity	< -6.0dBm
Power Budget	1.5dB
Receiver Overload	4.0dBm
Max Power Consumption	≤8W
Extinction Ratio	>3dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	QSFP MSA, CMIS, IEEE 802.3cd/802.3ck
Core Size	50/125µm
Modulation	4x 50G-PAM4光口
CDR	TX & RX内置CDR
Packaging Technology	盒装包装
BER	2.4E-4（Pre-FEC）/ 1E-12（Post-FEC）
MTBF	约3,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
