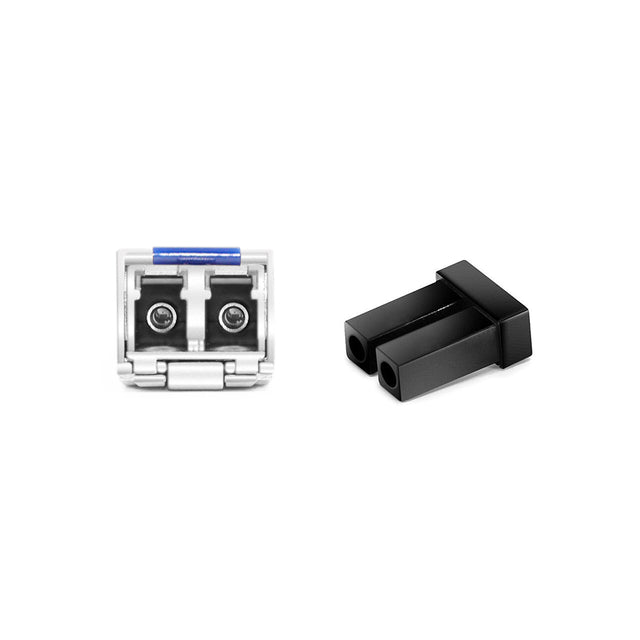

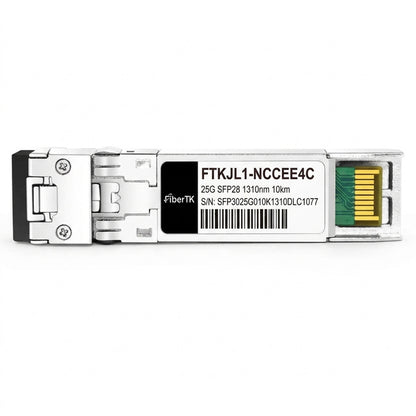

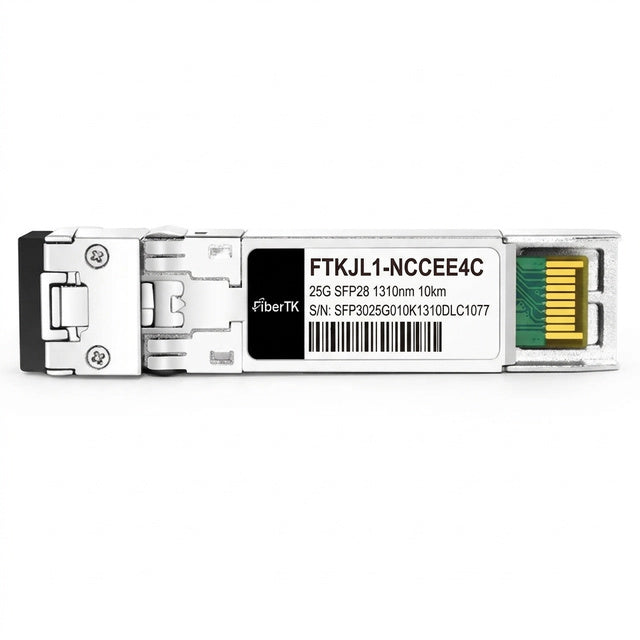

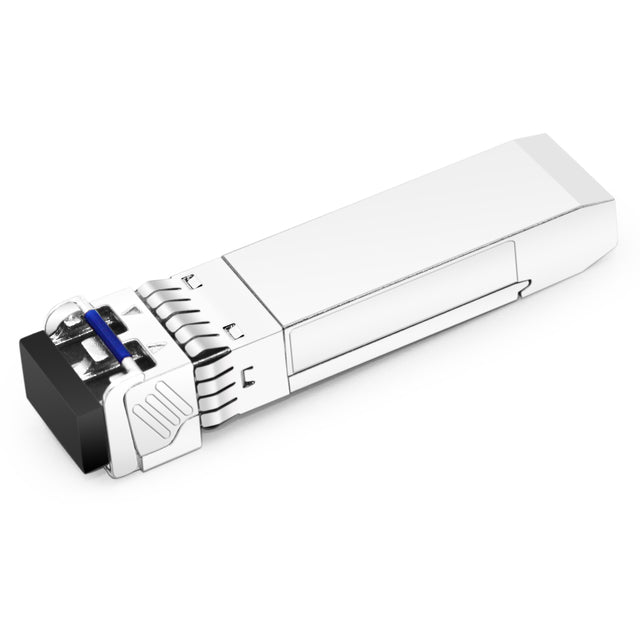

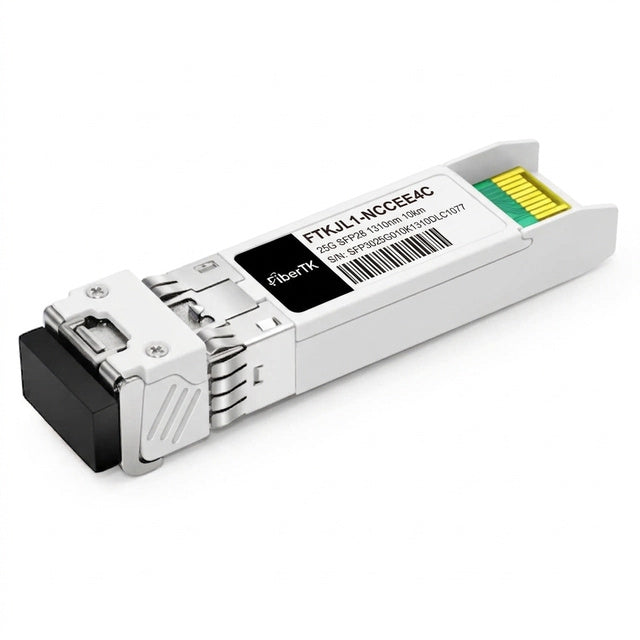

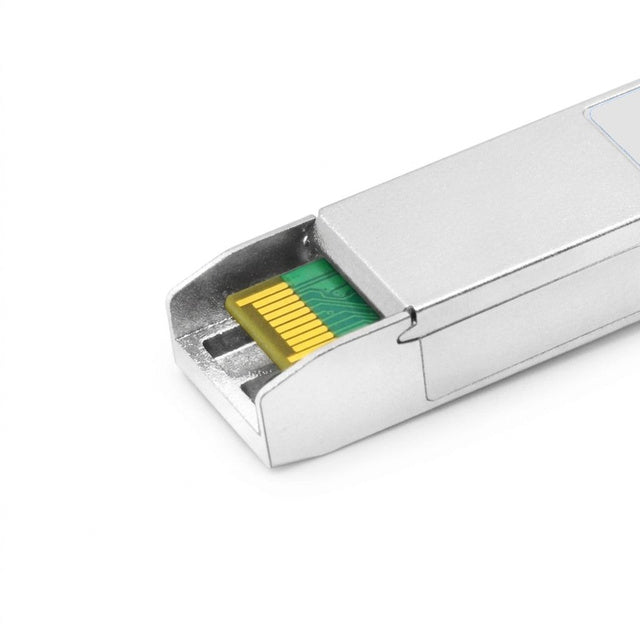

25GBASE-LR SFP28 1310nm 10km Duplex LC SMF

25GBASE-LR SFP28 1310nm 10km Duplex LC SMF

P# FiberTK

Form Factor	SFP28
Data Rate	25G
Max Distance	10km
Wavelength	1310nm
Connector	DuplexLC
Media Type	SMF
Transmitter Type	EML
Receiver Type	PIN
TX Power	-5~2dBm
Receiver Sensitivity	< -12dBm
Power Budget	7dB
Receiver Overload	2dBm
Max Power Consumption	≤1.5W
Extinction Ratio	>3dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	SFP28 MSA, SFF-8402, SFF-8472, IEEE 802.3by
Modulation	NRZ
CDR	TX & RX内置CDR
BER	1E-12
MTBF	约10,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
