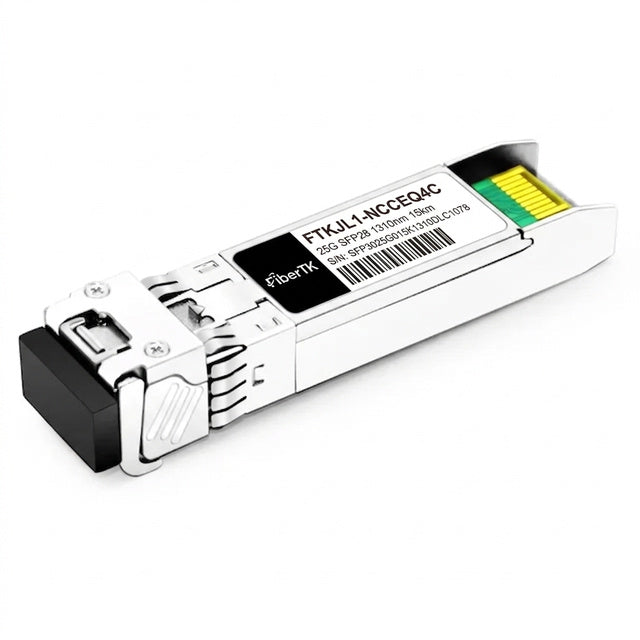

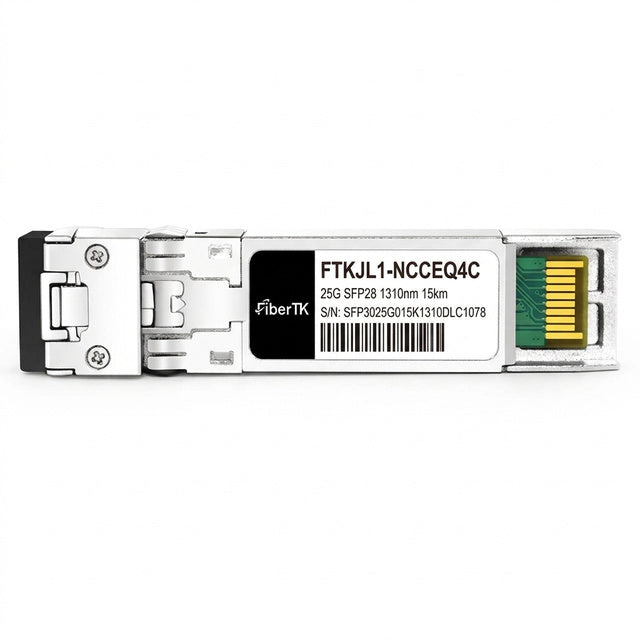

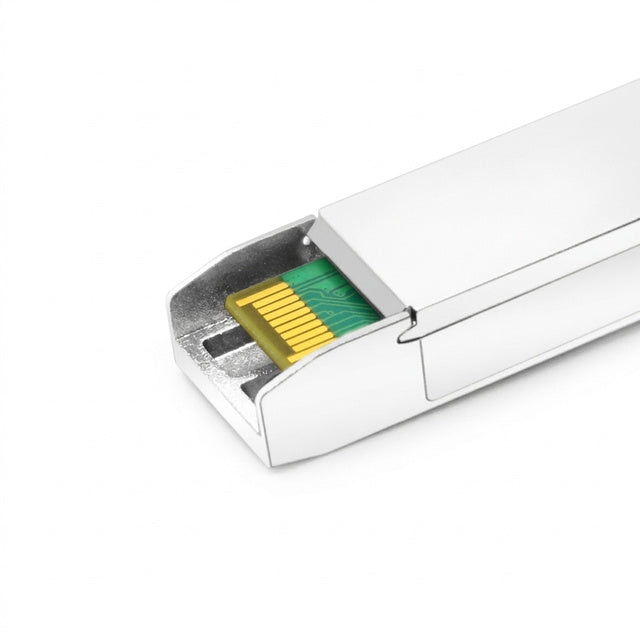

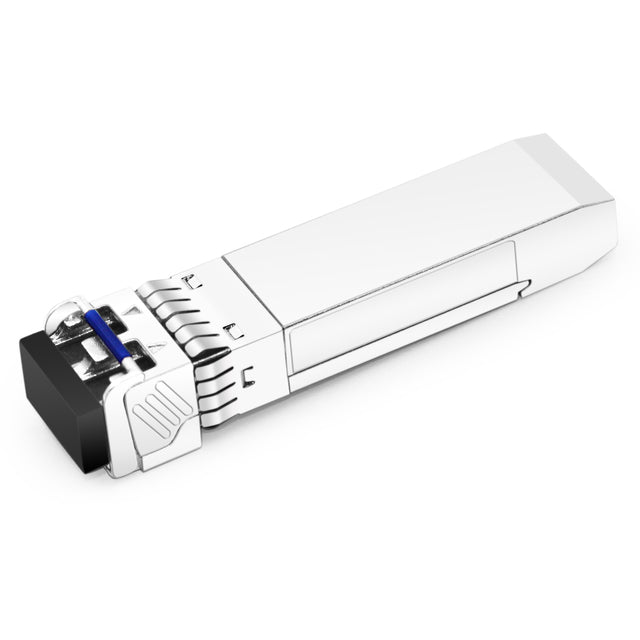

25GBASE-LR+ SFP28 1310nm 15km Duplex LC SMF

25GBASE-LR+ SFP28 1310nm 15km Duplex LC SMF

P# FiberTK

Form Factor	SFP28
Data Rate	25G
Max Distance	15km
Wavelength	1310nm

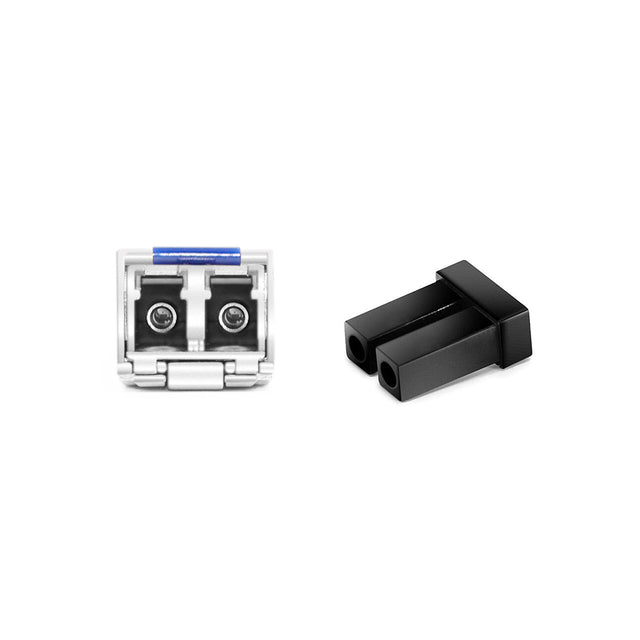

Connector	DuplexLC
Media Type	SMF
Transmitter Type	EML
Receiver Type	PIN
TX Power	-2~4dBm
Receiver Sensitivity	< -14dBm
Power Budget	12dB
Receiver Overload	4dBm
Max Power Consumption	≤2.5W
Extinction Ratio	>3dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	SFP28 MSA, SFF-8402, SFF-8472, IEEE 802.3by
Modulation	NRZ
CDR	TX & RX内置CDR
BER	1E-12
MTBF	约10,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
