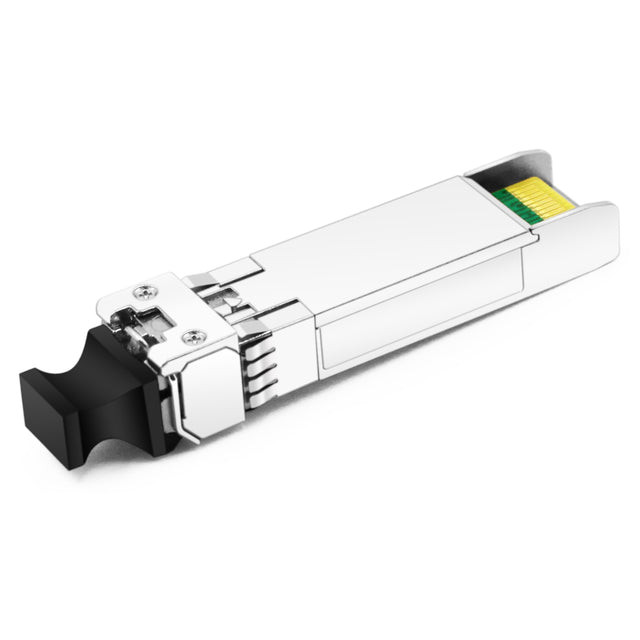

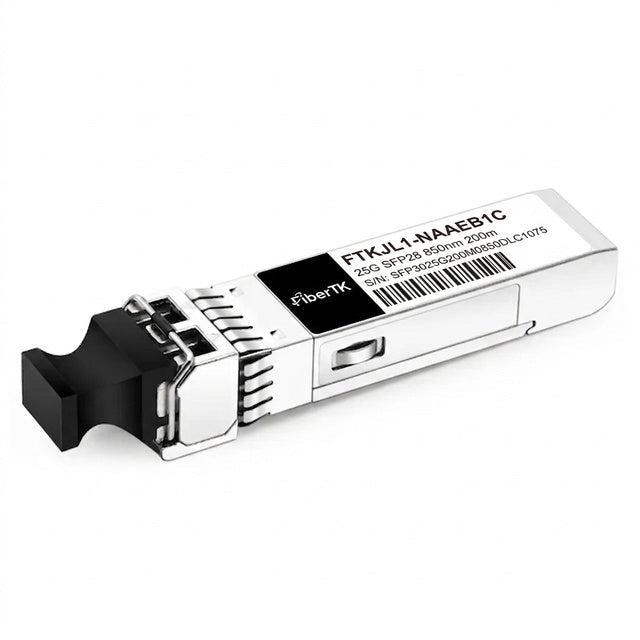

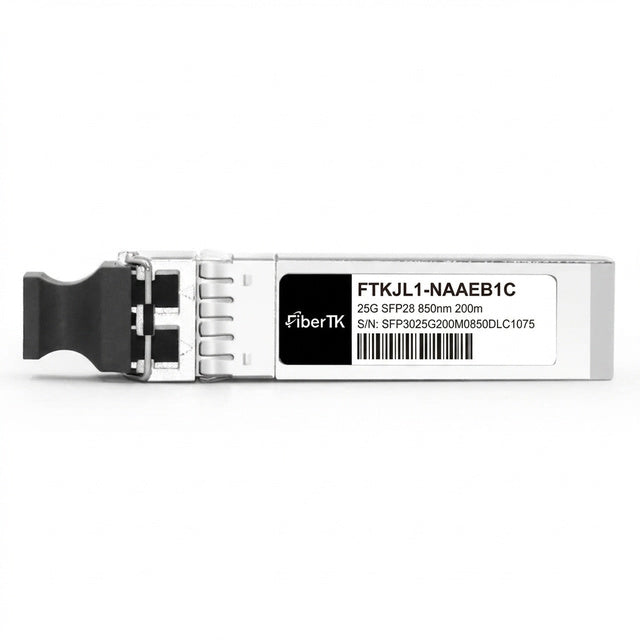

25GBASE-SR SFP28 850nm 200m on OM3/300m on OM4 Duplex LC MMF

P# FiberTK

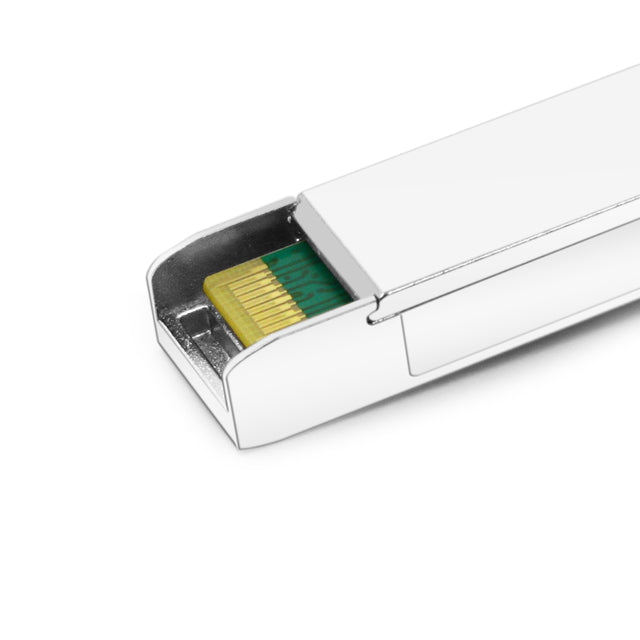

Form Factor	SFP28
Data Rate	25G
Max Distance	200m on OM3/300m on OM4
Wavelength	850nm

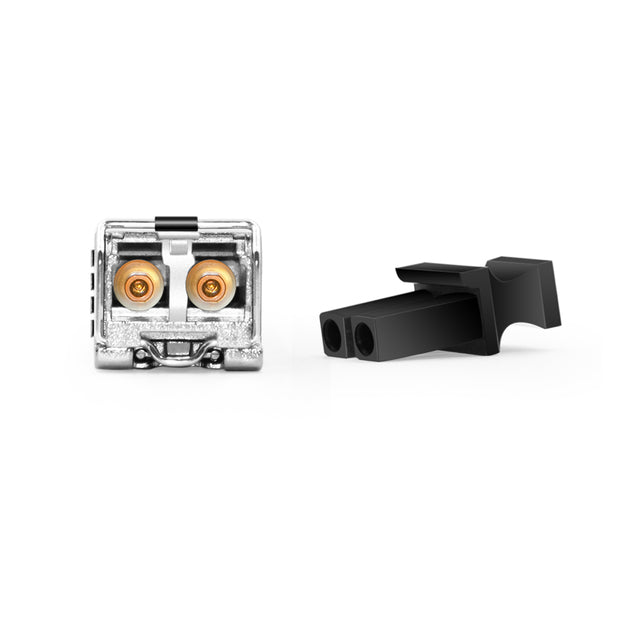

Connector	DuplexLC
Media Type	MMF
Transmitter Type	VCSEL
Receiver Type	PIN
TX Power	-8.4~2.4dBm
Receiver Sensitivity	< -10.3dBm
Power Budget	1.9dB
Receiver Overload	2.4dBm
Max Power Consumption	≤1.5W
Extinction Ratio	>2dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	SFP28 MSA, SFF-8402, SFF-8472, IEEE 802.3by
Core Size	50/125µm
Modulation	NRZ
CDR	TX & RX内置CDR
BER	1E-12
MTBF	约10,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
