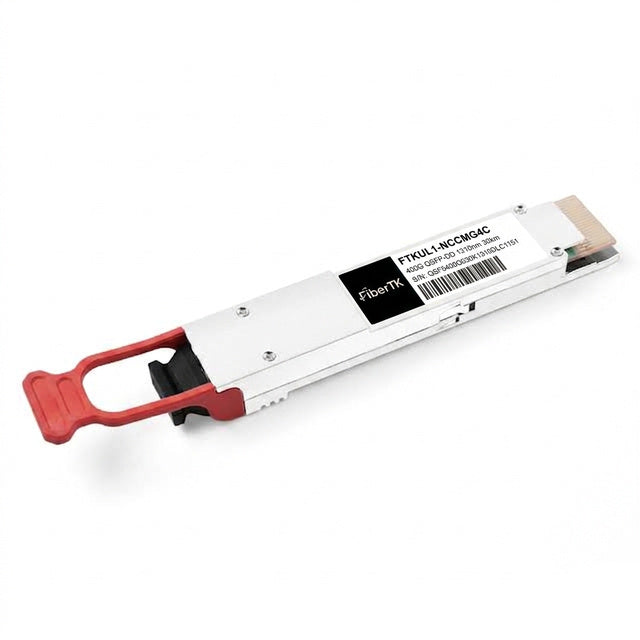

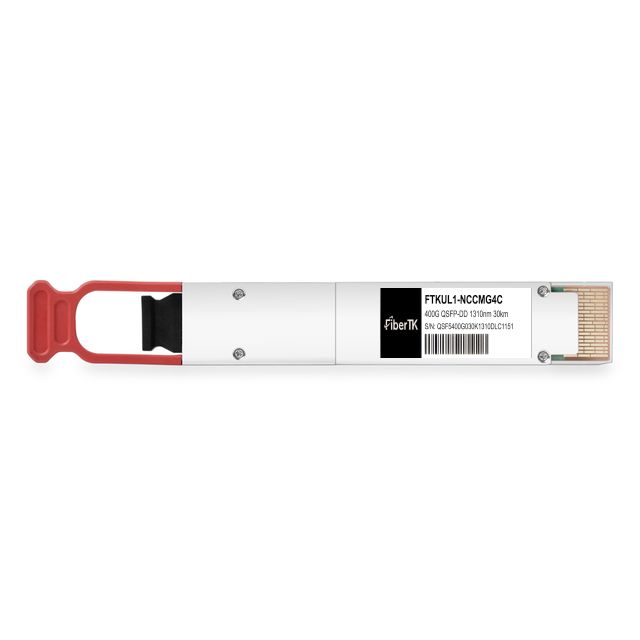

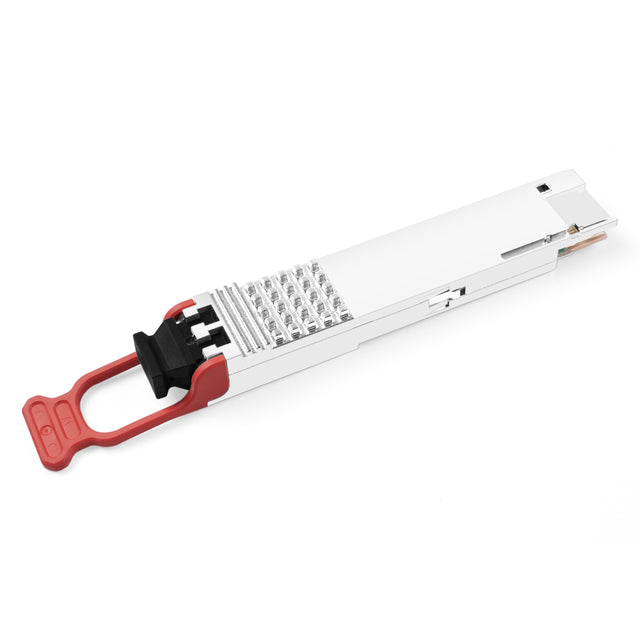

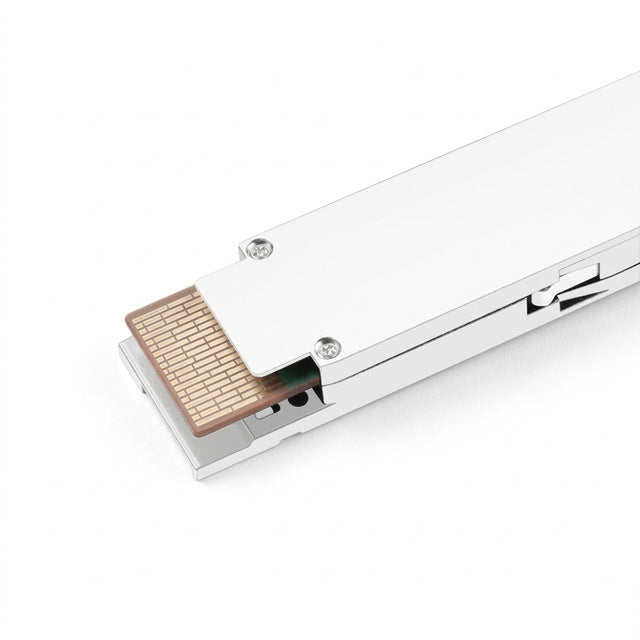

400GBASE-ER4 QSFP-DD 1310nm 30km Duplex LC SMF

400GBASE-ER4 QSFP-DD 1310nm 30km Duplex LC SMF

P# FiberTK

Form Factor	QSFP-DD
Data Rate	400G
Max Distance	30km
Wavelength	1310nm

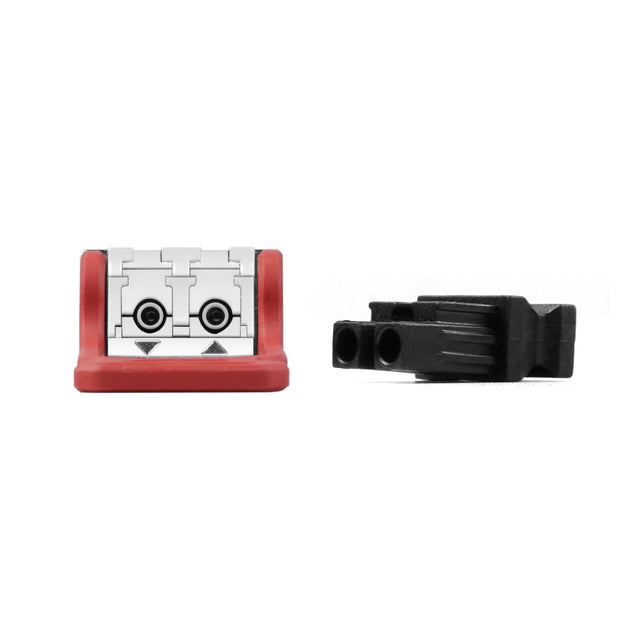

Connector	DuplexLC
Media Type	SMF
Transmitter Type	EML
Receiver Type	PIN
TX Power	0~5dBm
Receiver Sensitivity	< -15dBm
Power Budget	15dB
Receiver Overload	5dBm
Max Power Consumption	≤12W
Extinction Ratio	>4dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	QSFP-DD MSA, CMIS, IEEE 802.3bs/802.3ck
Modulation	4x 100G-PAM4光口
CDR	TX & RX内置CDR
Packaging Technology	盒装包装
BER	2.4E-4（Pre-FEC）/ 1E-12（Post-FEC）
MTBF	约1,500,000小时@40℃
Warranty	5年
Compatible With	Cisco
