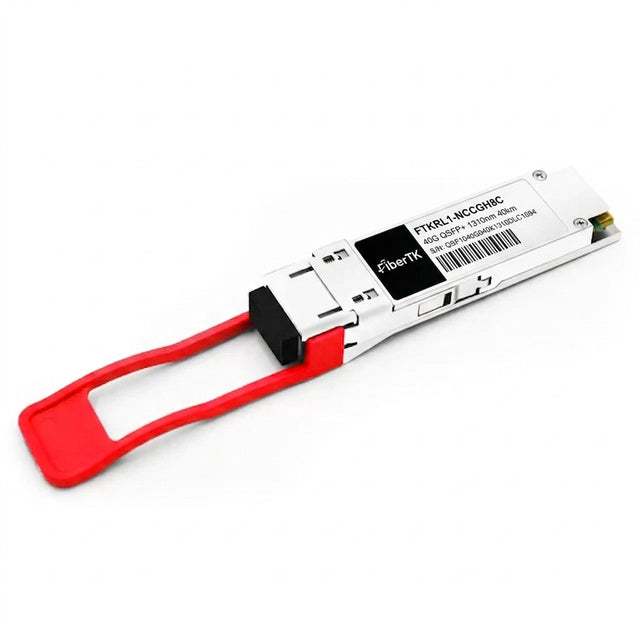

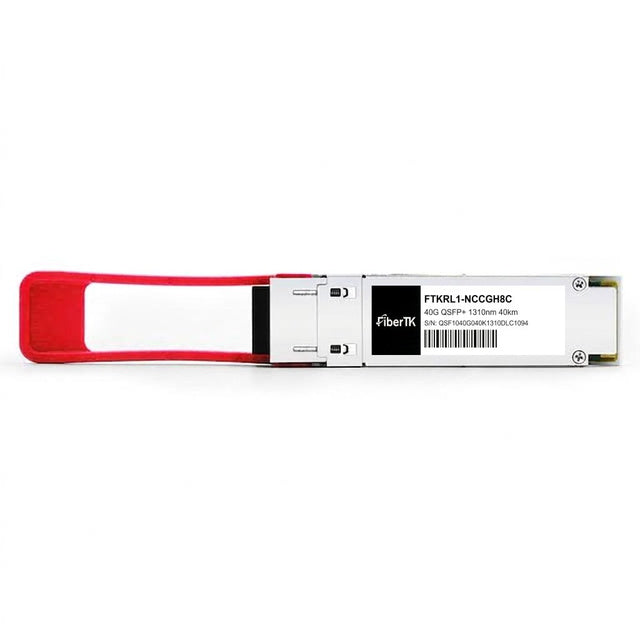

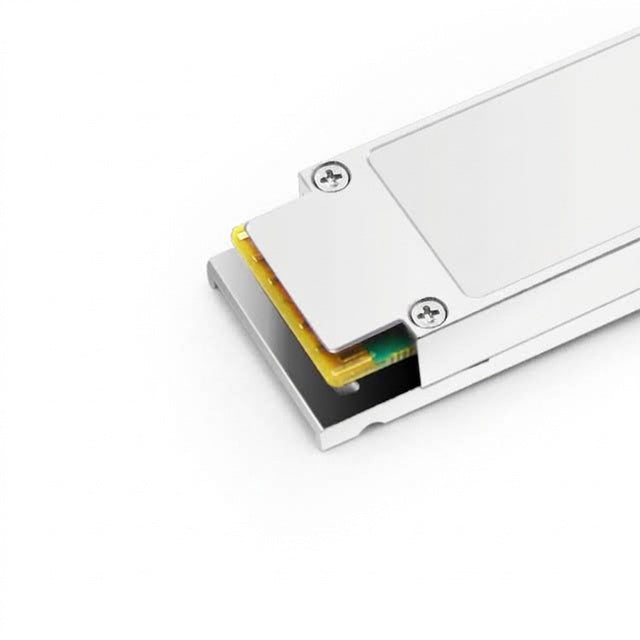

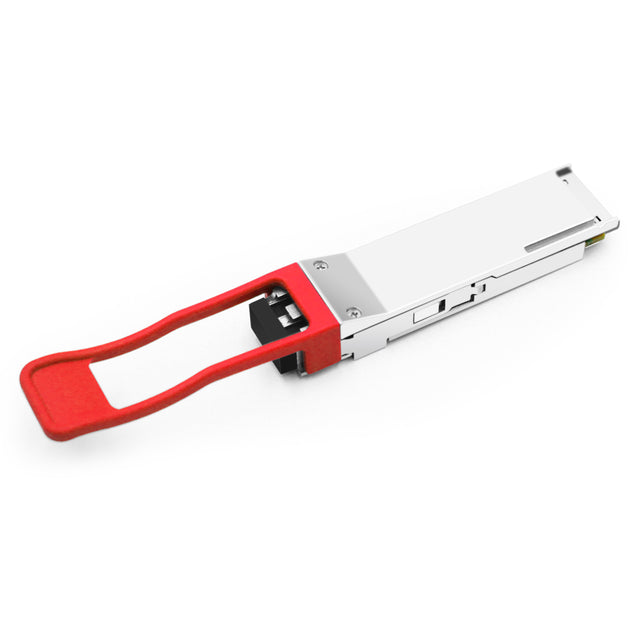

40GBASE-ER QSFP+ 1310nm 40km Duplex LC SMF

40GBASE-ER QSFP+ 1310nm 40km Duplex LC SMF

P# FiberTK

Form Factor	QSFP+
Data Rate	40G
Max Distance	40km
Wavelength	1310nm

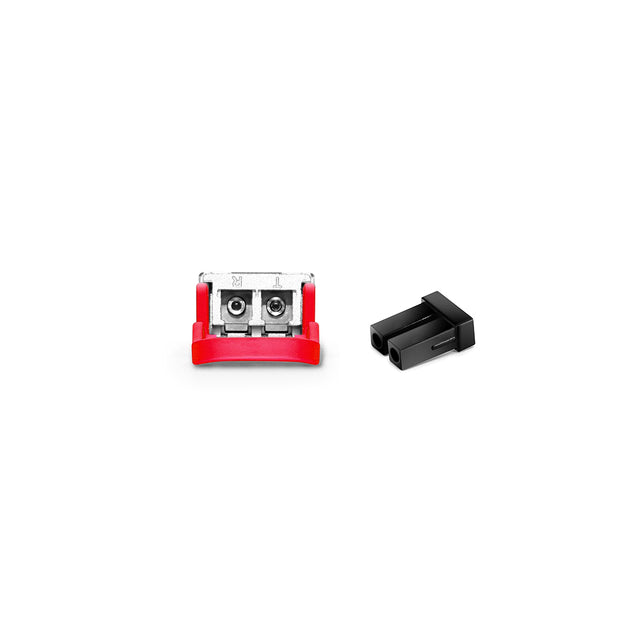

Connector	DuplexLC
Media Type	SMF
Transmitter Type	EML
Receiver Type	APD
TX Power	0~5dBm
Receiver Sensitivity	< -16dBm
Power Budget	16dB
Receiver Overload	5dBm
Max Power Consumption	≤4.5W
Extinction Ratio	>3dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	QSFP+ MSA, SFF-8436, IEEE 802.3ba
Modulation	4x 10G-NRZ光口
CDR	TX & RX内置CDR
Packaging Technology	盒装包装
BER	1E-12
MTBF	约5,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
