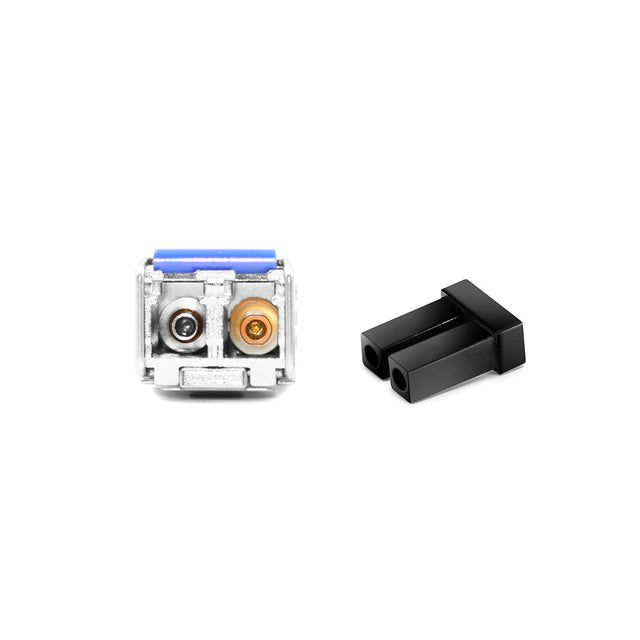

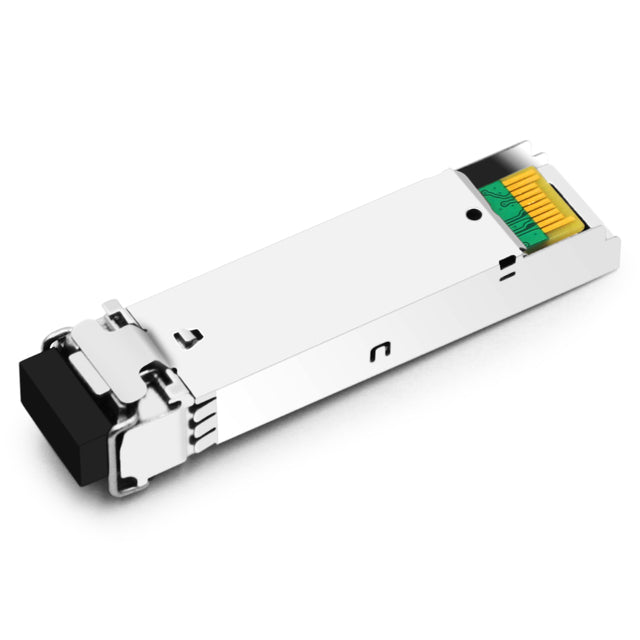

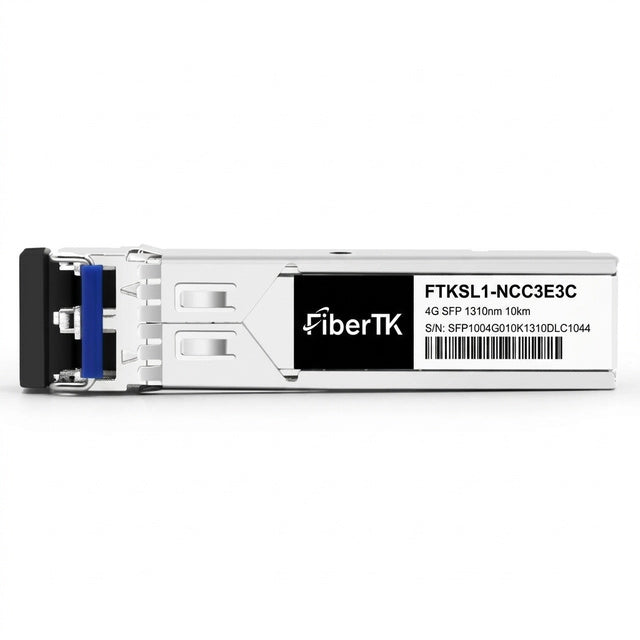

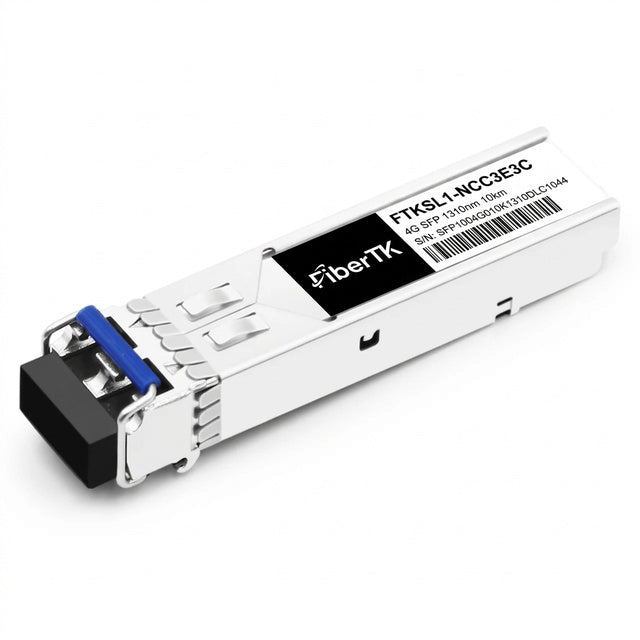

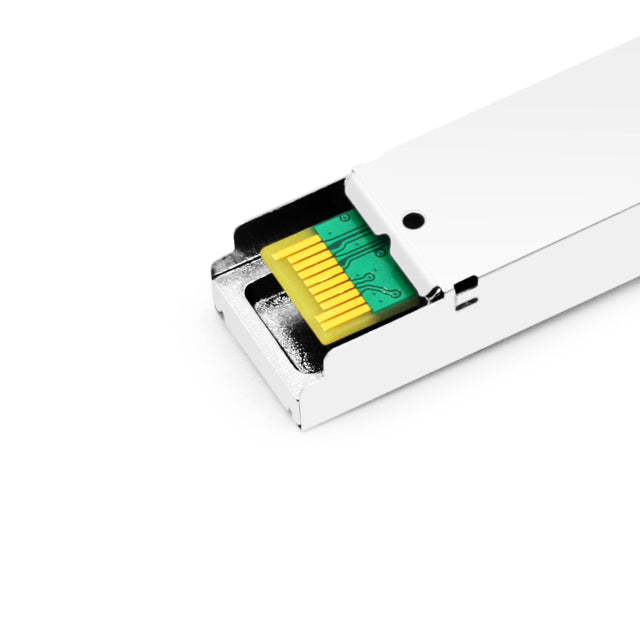

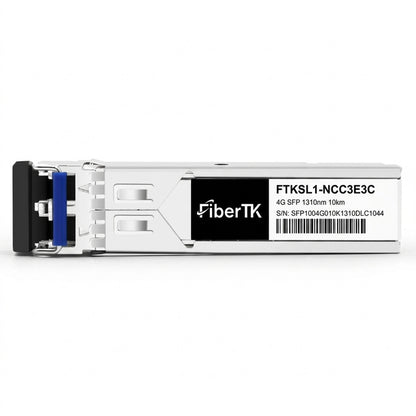

4GBASE-LR SFP 1310nm 10km Duplex LC SMF

4GBASE-LR SFP 1310nm 10km Duplex LC SMF

P# FiberTK

Form Factor	SFP
Data Rate	4G
Max Distance	10km
Wavelength	1310nm
Connector	DuplexLC
Media Type	SMF
Transmitter Type	DFB
Receiver Type	PIN
TX Power	-9~-3dBm
Receiver Sensitivity	< -20dBm
Power Budget	11dB
Receiver Overload	-3dBm
Max Power Consumption	≤1.2W
Extinction Ratio	>9dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	SFP MSA, SFF-8472, IEEE 802.3
Modulation	NRZ
BER	1E-12
MTBF	约10,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
