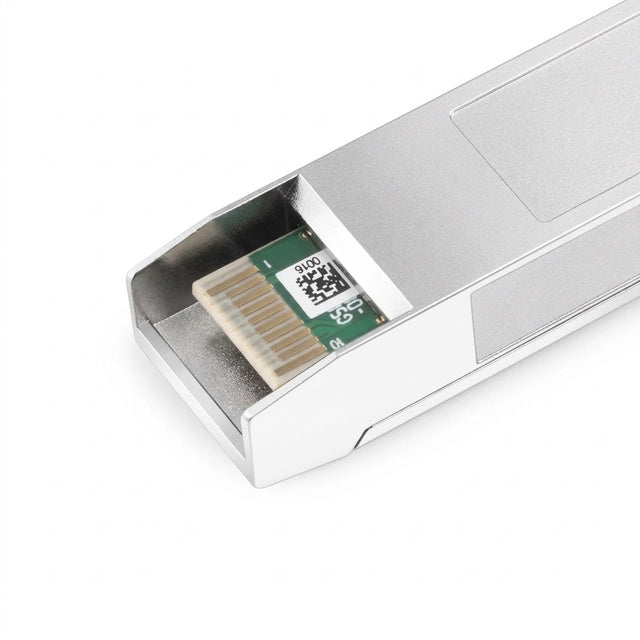

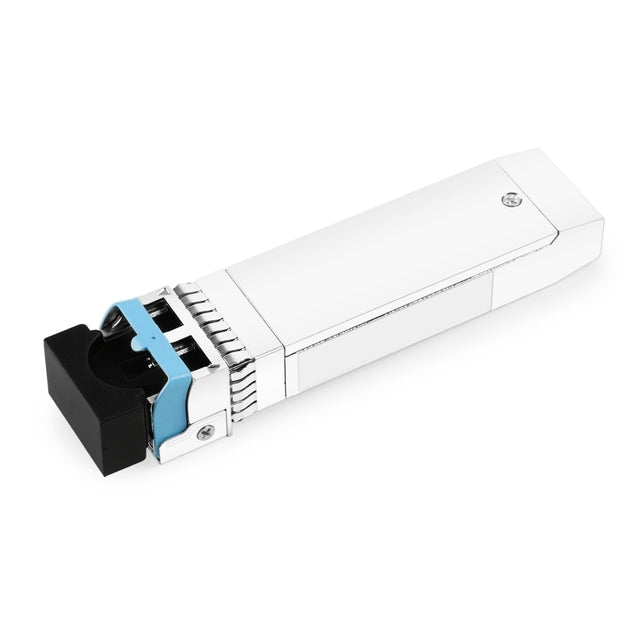

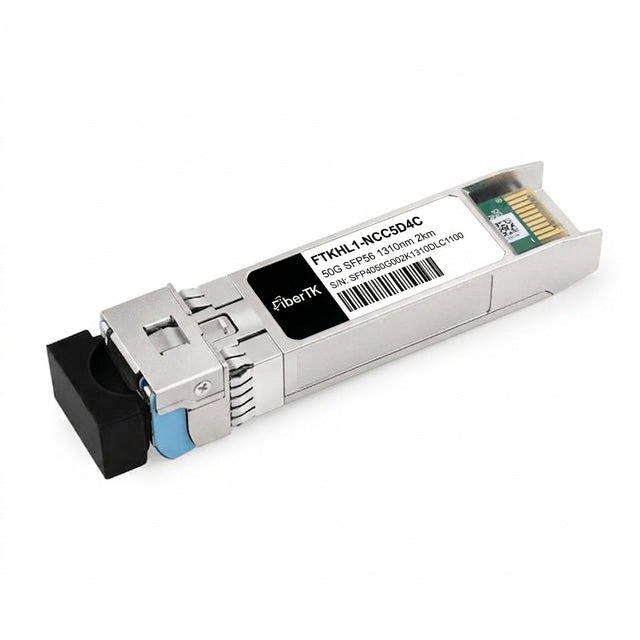

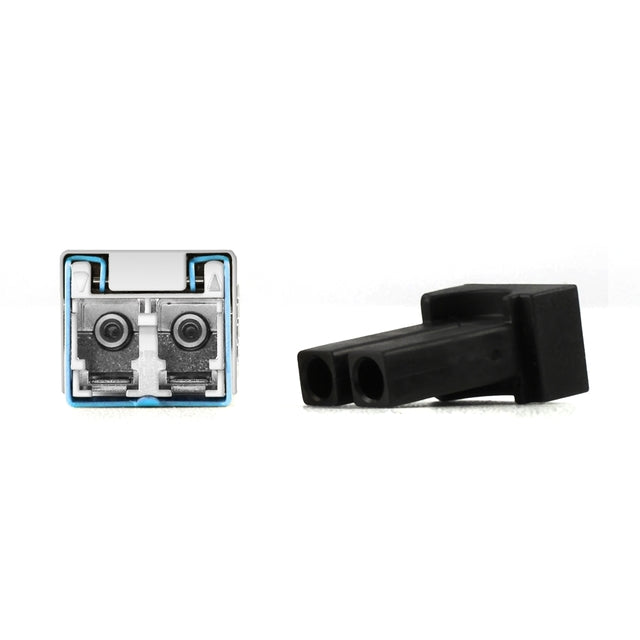

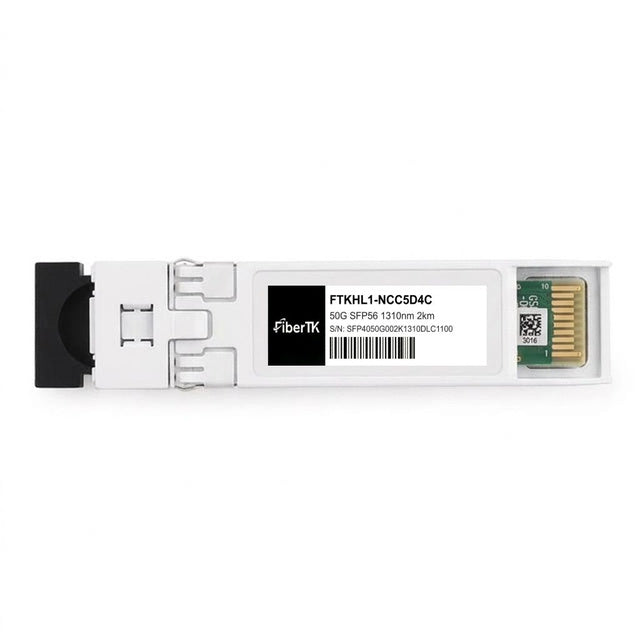

50GBASE-LX SFP56 1310nm 2km Duplex LC SMF

50GBASE-LX SFP56 1310nm 2km Duplex LC SMF

P# FiberTK

Form Factor	SFP56
Data Rate	50G
Max Distance	2km
Wavelength	1310nm
Connector	DuplexLC
Media Type	SMF
Transmitter Type	EML
Receiver Type	PIN
TX Power	-8.4~0.5dBm
Receiver Sensitivity	< -12.6dBm
Power Budget	4.2dB
Receiver Overload	0.5dBm
Max Power Consumption	≤2.5W
Extinction Ratio	>3.5dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	SFP MSA, SFF-8472, IEEE 802.3cd/802.3ck
Modulation	1x 50G-PAM4光口
CDR	TX & RX内置CDR
Packaging Technology	盒装包装
BER	1E-12（with FEC）
MTBF	约5,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
