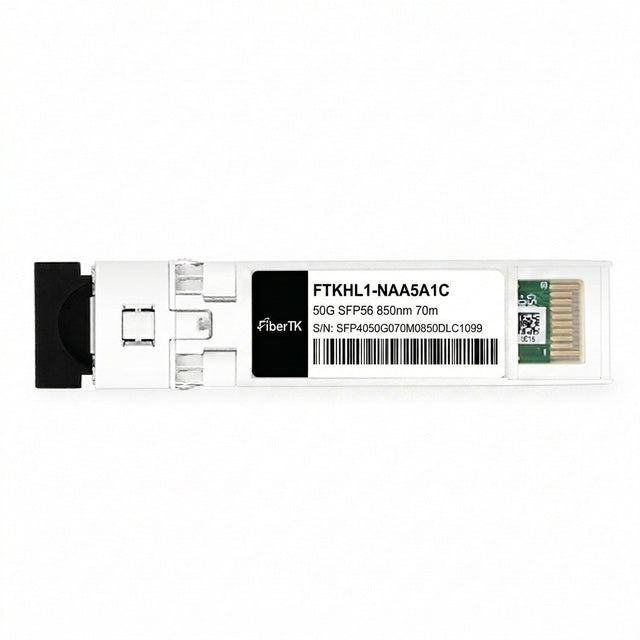

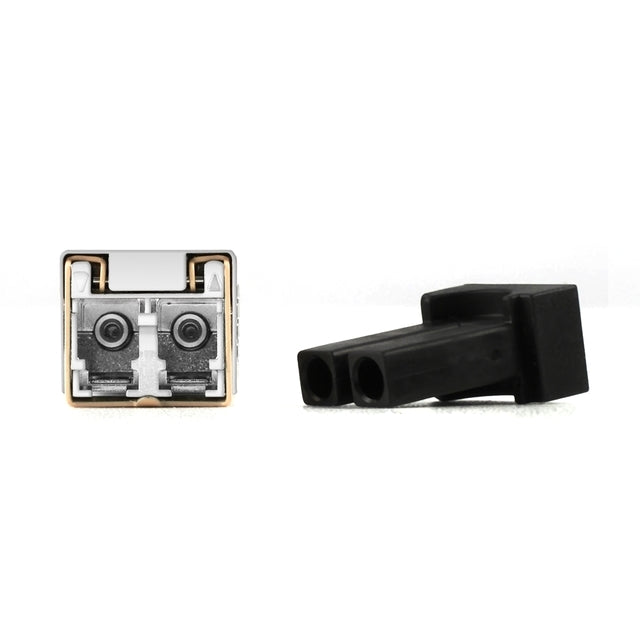

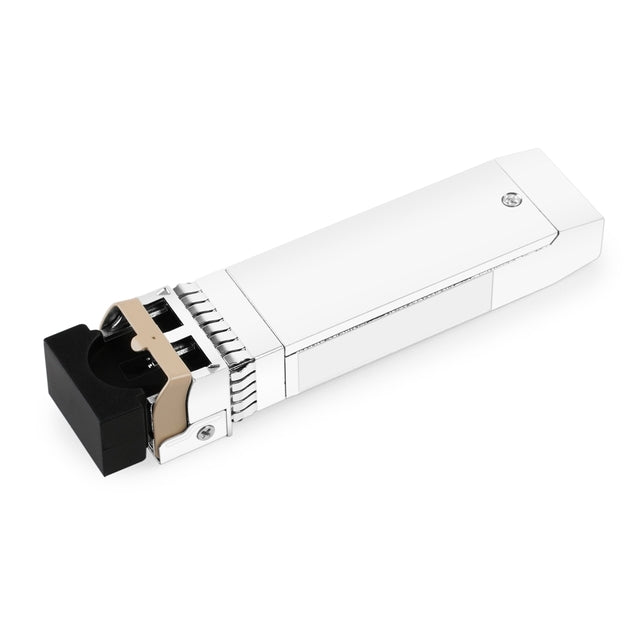

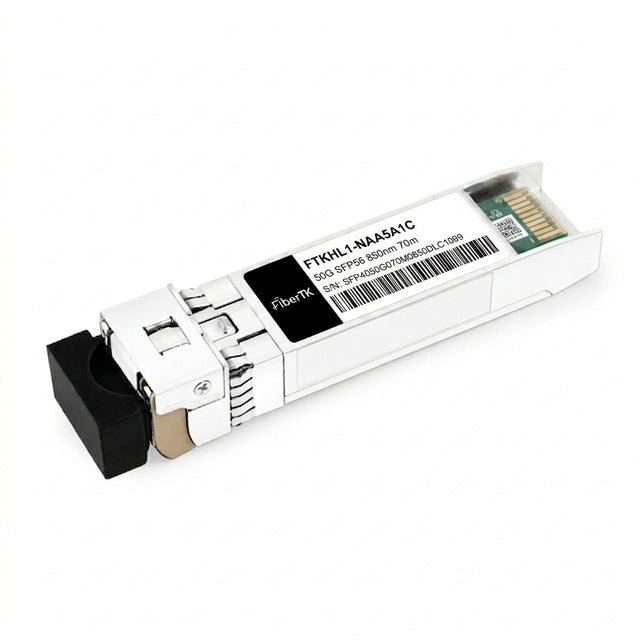

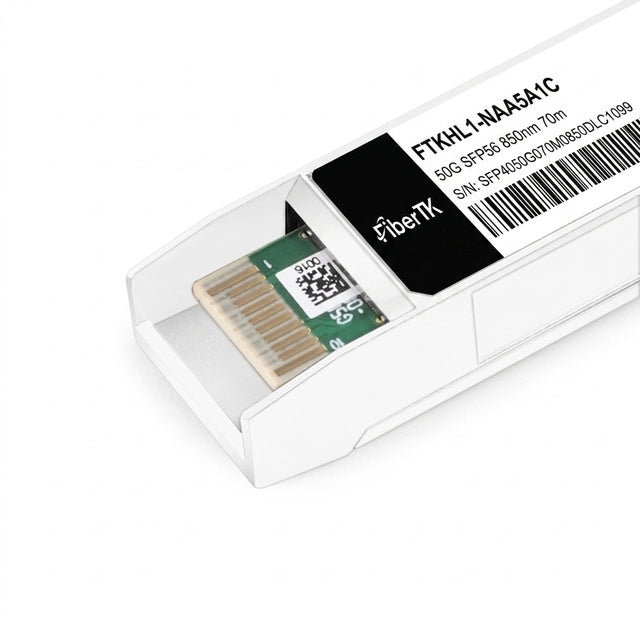

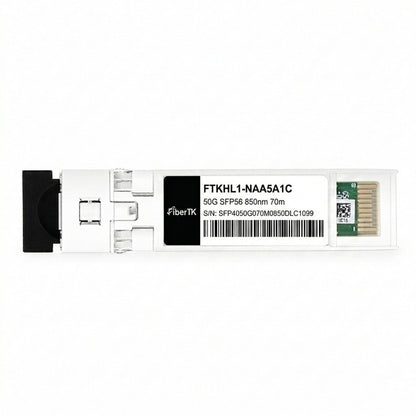

50GBASE-SR SFP56 850nm 70m on OM3/100m on OM4 Duplex LC MMF

P# FiberTK

Form Factor	SFP56
Data Rate	50G
Max Distance	70m on OM3/100m on OM4
Wavelength	850nm
Connector	DuplexLC
Media Type	MMF
Transmitter Type	VCSEL
Receiver Type	PIN
TX Power	-8.4~2.4dBm
Receiver Sensitivity	< -10.3dBm
Power Budget	1.9dB
Receiver Overload	2.4dBm
Max Power Consumption	≤2.5W
Extinction Ratio	>3dB
DDM/DOM	支持
Operating Temperature	0～70℃（32～158°F）
Protocols	SFP MSA, SFF-8472, IEEE 802.3cd/802.3ck
Core Size	50/125µm
Modulation	1x 50G-PAM4光口
CDR	TX & RX内置CDR
Packaging Technology	盒装包装
BER	1E-12（with FEC）
MTBF	约5,000,000小时@40℃
Warranty	5年
Compatible With	Cisco
