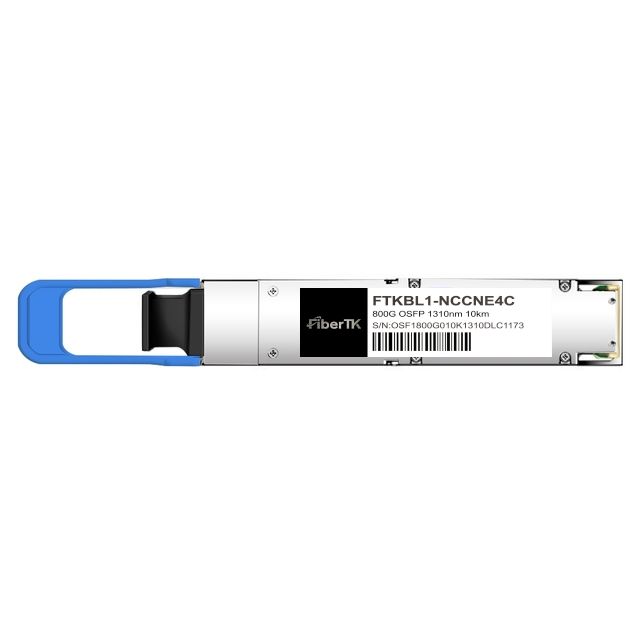

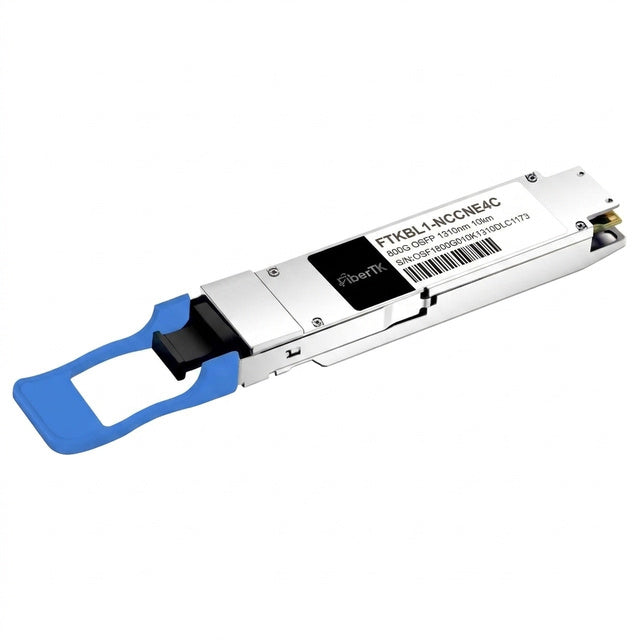

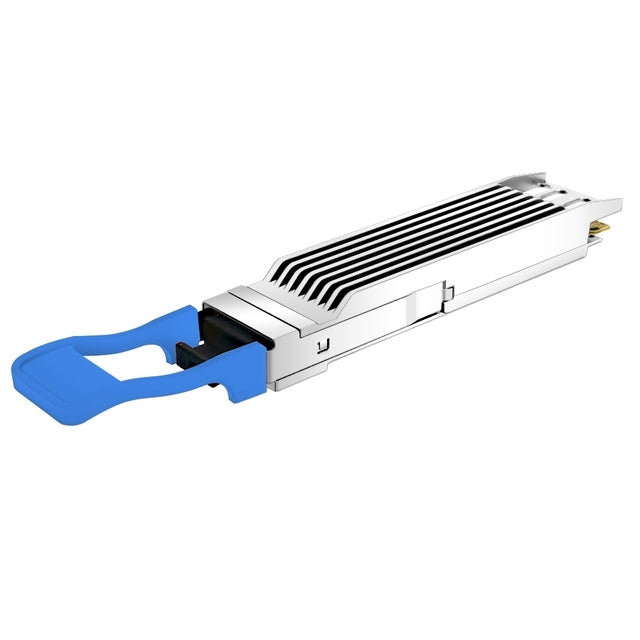

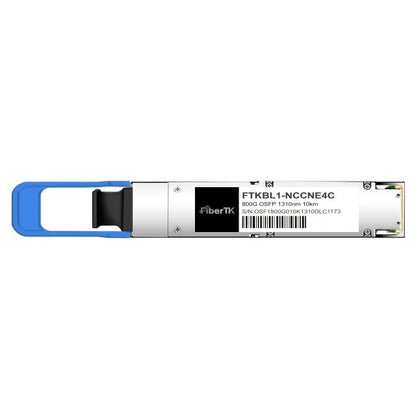

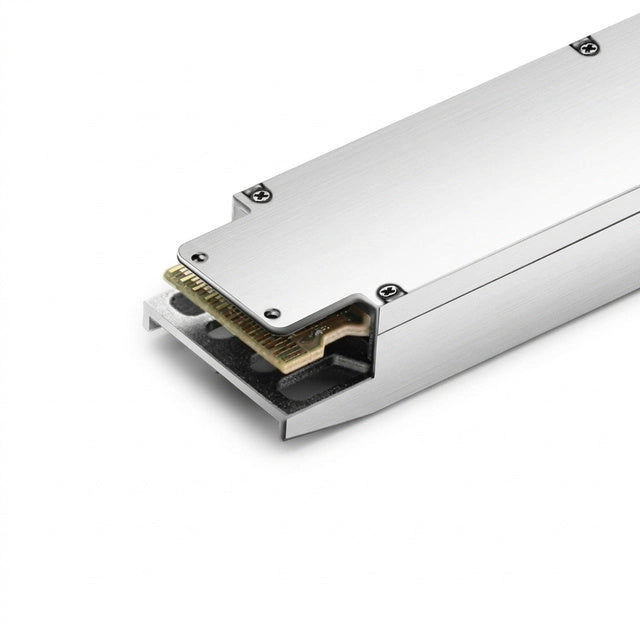

800GBASE-LR8 OSFP 1310nm 10km Duplex LC SMF

800GBASE-LR8 OSFP 1310nm 10km Duplex LC SMF

P# FiberTK

Form Factor OSFP
Data Rate 800G
Max Distance 10km
Wavelength 1310nm
Connector DuplexLC
Media Type SMF
Transmitter Type EML
Receiver Type PIN
TX Power -4.3~4.5dBm
Receiver Sensitivity < -10.6dBm
Power Budget 6.3dB
Receiver Overload 4.5dBm
Max Power Consumption ≤18W
Extinction Ratio >4dB
DDM/DOM 支持
Operating Temperature 0～70℃（32～158°F）
Protocols OSFP MSA, CMIS, IEEE 802.3bs/802.3ck
Modulation 8x 100G-PAM4光口
CDR TX & RX内置CDR
Packaging Technology 盒装包装
BER 2.4E-4（Pre-FEC）/ 1E-12（Post-FEC）
MTBF 约1,000,000小时@40℃
Warranty 5年
Compatible With Cisco
